CAMOZZI SERIES 9 SOLENOID VALVE

Code: CL951000P1123
€80.10
VAT excluded: €65.66
Size : 951000P1123
In stock 1 piece in stock Ships in 24/48 hours

Description

ISO 5599/1 Solenoid Valves Camozzi Series 9


Camozzi solenoid valves of the Series 9, built to the ISO 5599/1 standard with CNOMO electropneumatic interface: they are mounted on standardised sub-bases and are interchangeable with ISO valves of the same size. Reference code 951-000-P11-23 is a bistable double-solenoid 5/2 in size 1, for G1/4 sub-bases, with 900 Nl/min and pressure from 2 to 10 bar. The series includes monostable solenoid and spring versions, size 2 for G3/8 with 1610 Nl/min and size 3 for G1/2 with 4350 Nl/min, also 5/3 with open centres. Pilot solenoids with bistable manual override. Supplied with gasket and 4 screws; sub-base and coils separate.

Technical Specifications

  • Type: 5/2 and 5/3 ISO solenoid valves
  • Standard: ISO 5599/1, CNOMO interface
  • Sizes: 1 (G1/4, 900 Nl/min), 2 (G3/8, 1610 Nl/min), 3 (G1/2, 4350 Nl/min)
  • 951-000-P11-23: bistable 5/2 size 1, 2 to 10 bar
  • Maximum pressure: 10 bar
  • Temperature: 0 to 60 °C (from -20 °C with dry air)
  • Supply: Gasket and 4 screws; sub-base and coils separate

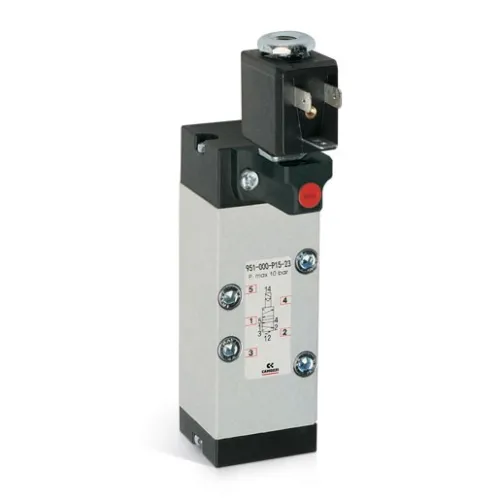

  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Control of large-bore ISO cylinders
  • Standardised systems with interchangeable valves
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL951000P1123
Manufacturer code
951-000-P11-23

Attachments

Recommended accessories and spare parts

CAMOZZI COIL MOD. SERIES A.. U..

€10.10
AVAILABLE
Availability: 7 In stock

Camozzi Series U7 22x22 coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-B connection, IP65 with connector, continuous duty. Voltages from 12 V to 230 V among the variants.

CAMOZZI COIL SERIES A8

€15.00
AVAILABLE
Availability: 6 In stock

Camozzi Series A8 30x30 PPS coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-A connection, class H, IP65 with connector. A83 24 V DC, A8B 24 V AC, A8D 110 V AC, A8E 220 V AC.

CAMOZZI SILENCER ART. 2921

€4.50
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).
