CAMOZZI FITTING ART. 1610

Code: CL161010814
€2.10
VAT excluded: €1.72
Size : HOSE 10/8 - 1/4"
In stock 34 pieces in stock Ships in 24/48 hours

Description

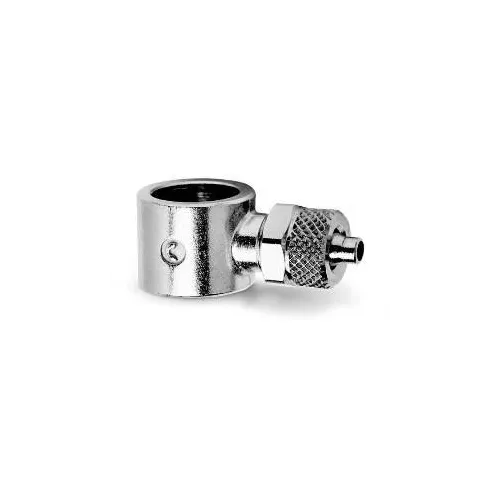

Single Swivel Ring Fitting Camozzi Series 1000 - Item No. 1610


Camozzi Mod. 1610 single ring, an eye-type swivel fitting from the Series 1000 slip-on fittings. It is mounted on the component with a hollow screw passing through it: before tightening, the ring is turned in the required direction, so the tube comes out where needed even in tight spaces. For the 10/8 sizes the catalogue indicates mounting with the Mod. 1635 hollow screw or on SCU, SVU and SCO flow regulators. The tube is pushed onto the guide cone and locked with the nut. Nickel-plated brass body, NBR O-ring, temperature from -20 to 80 °C. Tube and thread sizes can be selected among the variants.

Technical Specifications

  • Type: Single swivel ring (banjo), slip-on
  • Mounting: With hollow screw (Mod. 1631 or 1635) or on SCU, SVU, SCO regulators
  • Tube and thread: selectable among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Item No.: 1610
  • Brand: CAMOZZI

Applications and Uses

  • Swivel outlets on cylinders and valves
  • Mounting on Camozzi flow regulators
  • Circuits with little space around the ports

More details

Brand
CAMOZZI
Code
CL161010814
Manufacturer code
1610 10/8-1/4
