CAMOZZI FITTING ART. 1510

Code: CL151010812
€2.80
VAT excluded: €2.30
Size : HOSE 10/8-1/2"
In stock 33 pieces in stock Ships in 24/48 hours

Description

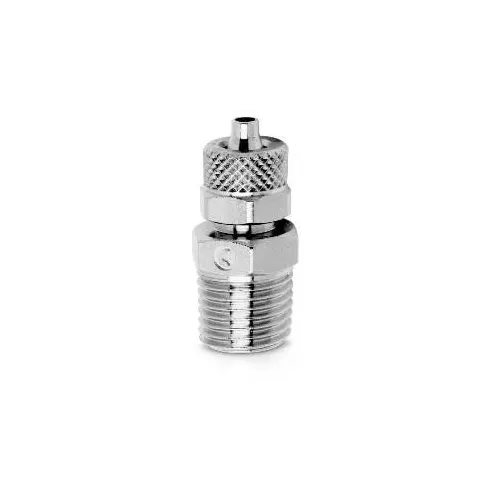

Slip-On Straight Male Fitting Camozzi Series 1000 - Item No. 1510


Camozzi Mod. 1510 straight male fitting, from the Series 1000 slip-on fittings for plastic tubes. It is the basic fitting to bring a plastic tube straight into a threaded hole, with a tapered male R or metric M12x1.25 connection. The tube is pushed onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner even on rigid PA and Hytrel polyester; the cone profile avoids cutting it. Body and nut are in nickel-plated brass with an NBR O-ring. Suitable for compressed air and low-pressure fluids from -20 to 80 °C. Tube from 5/3 to 15/12.5 mm and thread can be selected among the variants.

Technical Specifications

  • Type: Slip-on straight male fitting
  • Thread: Tapered R (ISO 7) or metric
  • Tube: selectable among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Item No.: 1510
  • Brand: CAMOZZI

Applications and Uses

  • Ports of valves, cylinders and filter units
  • Compressed air systems and lines in workshops and industry
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL151010812
Manufacturer code
1510 10/8-1/2

Attachments
