CAMOZZI FITTING ART. 1420

Code: CL14206418
€2.30
VAT excluded: €1.97
In stock 34 pieces in stock Ships in 24/48 hours

Description

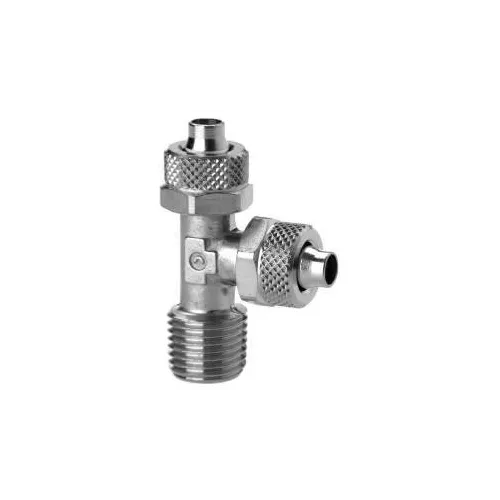

Camozzi Side Male Taper Tee Fitting 6/4 - R1/8 - Item No. 1420 6/4-1/8


Camozzi Mod. 1420 6/4-1/8 side male tee fitting, from the Series 1000 slip-on range for plastic tubes. It has two outlets for 6/4 mm tube and a male taper R1/8 connection on the side, to branch a line off a threaded component. The tube is slipped onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner even on rigid tubes such as PA and Hytrel polyester; the shape of the cone avoids cutting the tube. Body and nut are in nickel-plated brass with NBR O-rings. It works with compressed air and low-pressure fluids from -20 to 80 °C. Weight 23 g.

Technical Specifications

  • Type: Side male taper slip-on tee
  • Tube: 6/4 mm
  • Thread: R1/8 taper ISO 7
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Connectable tubes: PA, PE, PU, reinforced PVC, rilsan, Hytrel polyester
  • Working temperature: from -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Weight: 23 g
  • Item No.: 1420 6/4-1/8
  • Brand: CAMOZZI

Applications and Uses

  • Branches on valves, cylinders and air treatment units
  • Automatic machines, test benches and pneumatic panels
  • Circuits with polyamide or polyurethane tube

More details

Brand
CAMOZZI
Code
CL14206418
Manufacturer code
1420 6/4-1/8
