CAMOZZI FITTING 1493

Code: CL14936414
€2.40
VAT excluded: €1.97
Size : HOSE 6/4 - 1/4"
In stock 35 pieces in stock Ships in 24/48 hours

Description

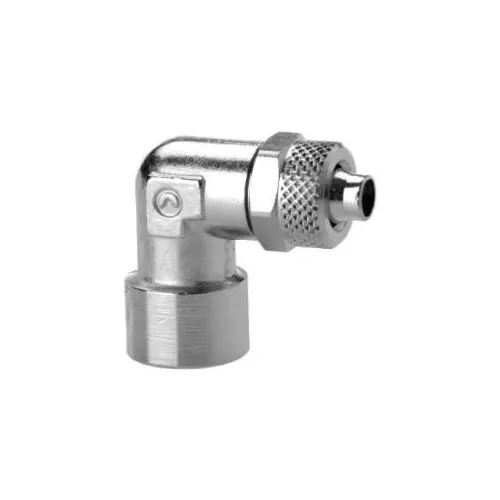

Parallel Female Elbow Fitting Camozzi Series 1000 - Item No. 1493


Camozzi Mod. 1493 parallel female elbow, from the Series 1000 slip-on fittings for plastic tubes. One side has the slip-on connection for the tube, the other a 90° parallel G female thread, where you can screw a nipple, a fitting or a component with a male port. The tube is pushed onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner; the cone shape avoids cutting it even with rigid polyamide. Body and nut in nickel-plated brass, NBR O-ring. For compressed air and low-pressure fluids from -20 to 80 °C. Variants for 6/4 and 8/6 tube with G1/8 or G1/4 thread.

Technical Specifications

  • Type: Slip-on parallel female elbow
  • Tube: 6/4 or 8/6 mm, among the variants
  • Female thread: G1/8 or G1/4
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Operating temperature: -20 to 80 °C
  • Item No.: 1493
  • Brand: CAMOZZI

Applications and Uses

  • 90° connection of tubes to components with a male port
  • Automatic machines, test benches and pneumatic panels
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL14936414
Manufacturer code
1493 6/4- 1/4\"

Attachments
