CAMOZZI FITTING ART. 1500

Code: CL150010812
€3.50
VAT excluded: €2.87
Size : HOSE 10/8-1/2"
In stock 56 pieces in stock Ships in 24/48 hours

Description

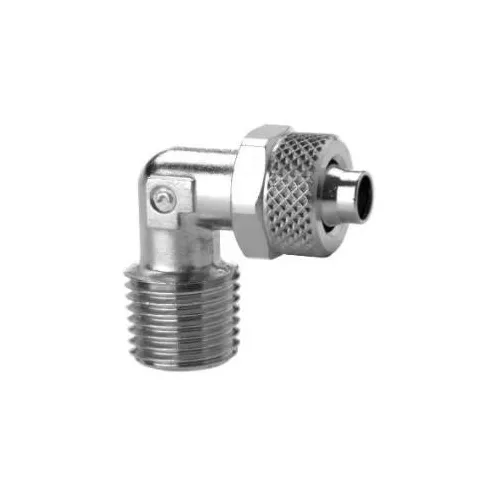

Fixed Male Elbow Fitting Camozzi Series 1000 - Item No. 1500


Camozzi Mod. 1500 fixed male elbow, from the Series 1000 slip-on fittings for plastic tubes. It connects a plastic tube at 90° to a component with a threaded hole, with a tapered male R or metric connection. The tube is pushed onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner even on rigid tubes such as polyamide and Hytrel polyester; the cone shape avoids cutting the tube. Body and nut in nickel-plated brass, NBR O-ring. It works with compressed air and low-pressure fluids from -20 to 80 °C. Tube sizes, from 5/3 to 15/12.5 mm, and thread can be selected among the variants.

Technical Specifications

  • Type: Slip-on fixed male elbow
  • Thread: Tapered R (ISO 7) or metric
  • Tube: selectable among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Item No.: 1500
  • Brand: CAMOZZI

Applications and Uses

  • Connecting tubes to valves, cylinders and regulators
  • Automatic machines, test benches and pneumatic panels
  • 90° outlets in tight spaces

More details

Brand
CAMOZZI
Code
CL150010812
Manufacturer code
1500 10/8-1/2
