CAMOZZI FITTING ART. 1703

Code: CL170364101
€0.28
VAT excluded: €0.23
Size : HOSE 6/4 - 10X1
In stock 78 pieces in stock Ships in 24/48 hours

Description

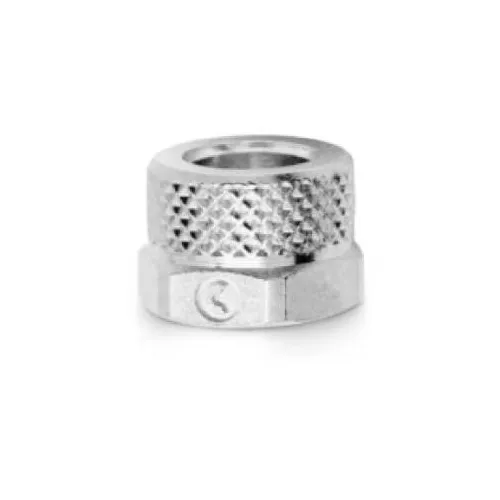

Locking Nut for Camozzi Series 1000 Slip-On Fittings - Item No. 1703


Camozzi Mod. 1703 locking nut, a spare part for the Series 1000 slip-on fittings for plastic tubes. It is the nut that screws onto the fitting body and pushes the tube onto the guide cone, ensuring the seal; it is tightened by hand or with a spanner even on rigid tubes such as polyamide. It is needed when the original nut is damaged or lost, or to rebuild a joint without replacing the whole fitting. The variants available are for 6/4 mm tube with M10x1 thread and for 8/6 mm tube with M12x1 thread, in line with the sizes in the Camozzi catalogue. Weight of a few grams.

Technical Specifications

  • Type: Locking nut for slip-on fittings
  • Series: 1000 slip-on quick fittings
  • Sizes: 6/4-M10x1 and 8/6-M12x1, selectable among the variants
  • Series material: Nickel-plated brass
  • Weight: 4 g (6/4) and 5 g (8/6)
  • Item No.: 1703
  • Brand: CAMOZZI

Applications and Uses

  • Spare part for Camozzi slip-on fittings
  • Maintenance and repair of pneumatic circuits
  • Rebuilding joints on plastic tube

More details

Brand
CAMOZZI
Code
CL170364101
Manufacturer code
1703 6/4-M10X1
