CAMOZZI FITTING ART. 1310

Code: CL131010
€0.29
VAT excluded: €0.24
Size : HOSE 10
In stock 68 pieces in stock Ships in 24/48 hours

Description

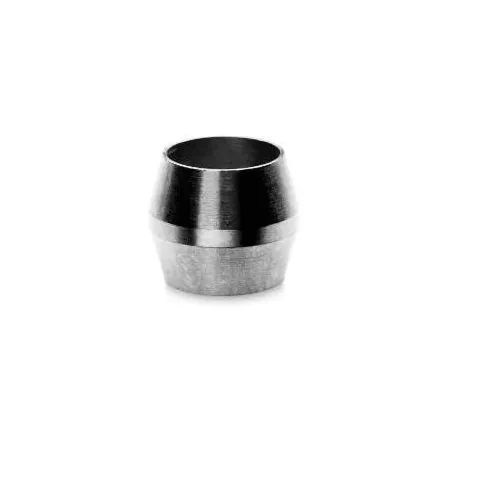

Olive for Camozzi Series 1000 Universal Fittings - Item No. 1310


Camozzi Mod. 1310 olive, an accessory for the universal olive fittings of Series 1000. It is the ring that, tightened by the locking nut, deforms on the tube and locks it tight in the conical seat of the fitting. For the 12 mm tube the range includes the double-cone olive version. Seats, olives and nuts of the series follow the DIN 3870-3861 standards, so the spare mates with Camozzi universal fittings without adaptation. It is used to remake a dismantled joint or to replace a deformed olive: it is used with plastic tubes of every type and with copper, brass, steel and aluminium tubes, in circuits up to 40 bar.

Technical Specifications

  • Type: Olive (clamping ring) for universal fittings
  • Series: 1000 universal olive
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Tube diameter: selectable from the variants
  • Item No.: 1310
  • Brand: CAMOZZI

Applications and Uses

  • Remaking joints with universal olive fittings
  • Copper or plastic tube lines for compressed air
  • Pneumatic and low-pressure hydraulic circuits
  • Spare parts stock for maintenance

More details

Brand
CAMOZZI
Code
CL131010
Manufacturer code
1310 10
