CAMOZZI FITTING ART. 1590

Code: CL15901210
€3.80
VAT excluded: €3.11
Size : HOSE 12/10
In stock 19 pieces in stock Ships in 24/48 hours

Description

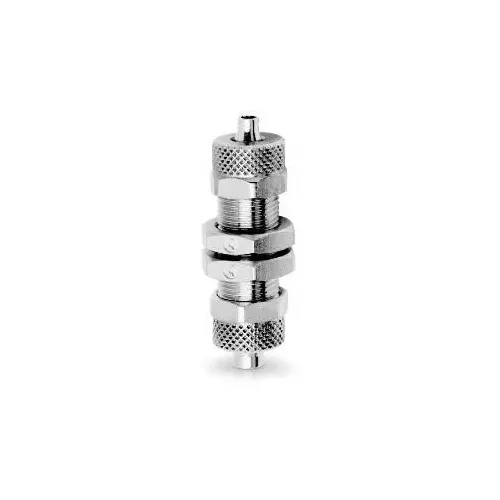

Straight Bulkhead Fitting Camozzi Series 1000 - Item No. 1590


Camozzi Mod. 1590 straight bulkhead fitting, from the Series 1000 slip-on fittings for plastic tubes. It is fitted in a hole in a panel, cabinet or housing and fixed with the nut on the threaded body: two tubes are pushed on, one on each side of the wall, so the line passes through the sheet metal neatly and without straining the tube. The catalogue also lists reducing versions, with tubes of different diameters on the two sides. Body and nuts in nickel-plated brass, NBR O-ring; the guide cone avoids cuts to the tube. For compressed air and low-pressure fluids from -20 to 80 °C. Tube size among the variants.

Technical Specifications

  • Type: Slip-on straight bulkhead fitting
  • Series: 1000 slip-on quick fittings
  • Tube: selectable among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Item No.: 1590
  • Brand: CAMOZZI

Applications and Uses

  • Passing pneumatic lines through cabinets and housings
  • Automatic machines, test benches and pneumatic panels
  • Control panels and pneumatic cabinets
