CAMOZZI FITTING ART. 1303

Code: CL130310
€0.76
VAT excluded: €0.62
Size : 3/8"HOSE 10
In stock 178 pieces in stock Ships in 24/48 hours

Description

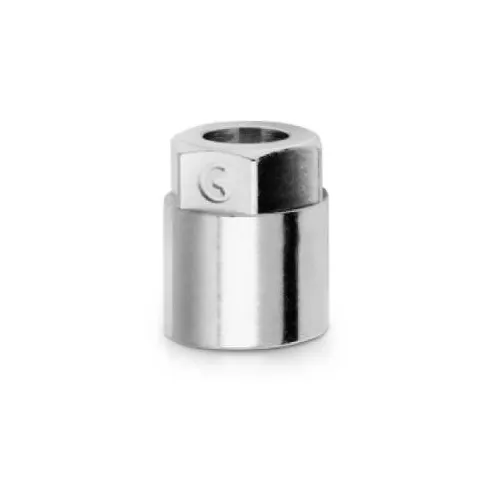

Locking Nut for Camozzi Series 1000 Universal Fittings - Item No. 1303


Camozzi Mod. 1303 locking nut, an accessory for the universal olive fittings of Series 1000. It screws onto the body of the fitting and pushes the olive against the tube, deforming it in the conical seat: in this way the tube stays locked tight. It is needed as a spare when the original nut is damaged or to remake a joint. Seats, olives and nuts of the series follow the DIN 3870-3861 standards, so the nut mates with Camozzi universal fittings of the same size. The universal fittings work up to 40 bar and accept plastic, copper, brass, steel and aluminium tubes. Variants for tube from 4 to 10 mm with threads from 1/8 to 3/8.

Technical Specifications

  • Type: Locking nut for universal fittings
  • Series: 1000 universal olive
  • Material: Nickel-plated brass
  • Maximum pressure of the fittings: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Size: tube and thread among the variants
  • Item No.: 1303
  • Brand: CAMOZZI

Applications and Uses

  • Remaking joints with universal fittings
  • Copper or plastic tube lines
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL130310
Manufacturer code
1303 10-3/8
