CAMOZZI FITTING ART. 1431

Code: CL14316414
€3.50
VAT excluded: €2.87
Size : 6/4-1/4"-6
In stock 33 pieces in stock Ships in 24/48 hours

Description

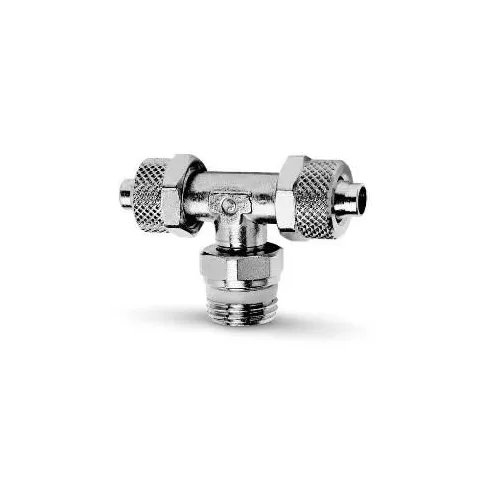

Camozzi Series 1000 Sprint Swivel Male Tee Fitting - Item No. 1431


Camozzi Mod. 1431 swivel male tee fitting, Sprint version of the Series 1000 slip-on range for plastic tubes. The tee body rotates around the cylindrical threaded connection, so the two tube outlets can be oriented in the desired direction after fitting, without unscrewing. The tube is slipped onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner; the shape of the cone avoids cutting the tube even with PA and Hytrel polyester. Body and nut in nickel-plated brass, NBR O-ring. For compressed air and low-pressure fluids from -20 to 80 °C. Tube and thread sizes selectable from the variants.

Technical Specifications

  • Type: Sprint swivel male slip-on tee
  • Thread: Cylindrical G (ISO 228)
  • Tube: selectable from the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Connectable tubes: PA, PE, PU, reinforced PVC, rilsan, Hytrel polyester
  • Working temperature: from -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Item No.: 1431
  • Brand: CAMOZZI

Applications and Uses

  • Adjustable branches on valves and cylinders
  • Automatic machines, test benches and pneumatic panels
  • Circuits with little space for tube bulk

More details

Brand
CAMOZZI
Code
CL14316414
Manufacturer code
1431 6/4-1/4

Attachments
