CAMOZZI FITTING ART.1631-01-1/4

Code: CL16310114
€1.20
VAT excluded: €0.98
Size : 1/4"
In stock 113 pieces in stock Ships in 24/48 hours

Description

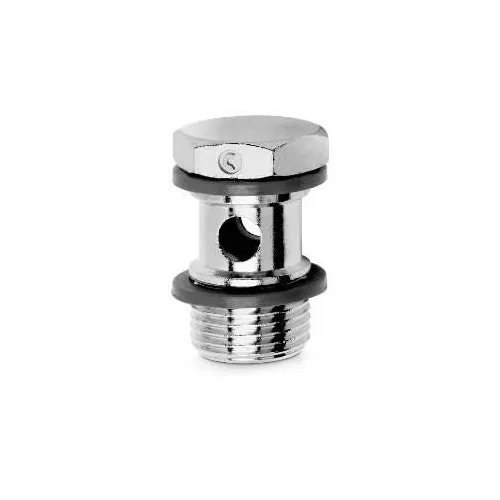

Single Hollow Screw for Swivel Ring Fittings Camozzi - Item No. 1631 01


Camozzi Mod. 1631 01 single hollow screw, an accessory of the Series 1000. It is the drilled screw that fixes a swivel ring fitting on the component and lets the air pass through it: before tightening, the ring is turned in the required direction, then the screw is tightened and the tube comes out where needed, even in tight spaces. The catalogue pairs it with the swivel fittings Mod. 6610, 6620, 1610, 1620, 2023 and 1170. Variants with G1/4 parallel thread, weight 24 g, or G1/8. To fit two stacked rings on the same port, use the long double hollow screw Mod. 1635.

Technical Specifications

  • Type: Single hollow screw
  • Thread: G1/4 or G1/8, among the variants
  • Pairing: Swivel rings Mod. 6610, 6620, 1610, 1620, 2023, 1170
  • Weight: 24 g (G1/4)
  • Item No.: 1631 01
  • Brand: CAMOZZI

Applications and Uses

  • Mounting of swivel ring fittings
  • Cylinders, valves and manifolds
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL16310114
Manufacturer code
1631 01-1/4
