CAMOZZI FITTING ART.1540

Code: CL1540108
€3.70
VAT excluded: €3.03
Size : HOSE 10/8
In stock 33 pieces in stock Ships in 24/48 hours

Description

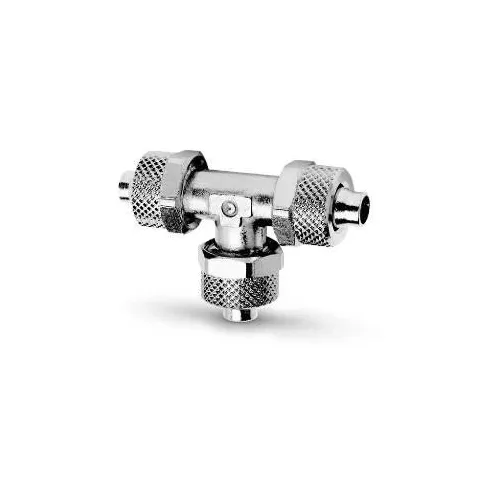

Slip-On Union Tee Fitting Camozzi Series 1000 - Item No. 1540


Camozzi Mod. 1540 union tee, from the Series 1000 slip-on fittings for plastic tubes. It has three slip-on connections arranged in a T and is used to branch a secondary line directly on the tube, without threads or manifolds. Each tube is pushed onto the guide cone and locked with its own clamping nut, tightened by hand or with a spanner even on rigid PA and Hytrel polyester; the cone shape avoids cuts. Body and nuts in nickel-plated brass, NBR O-ring, for compressed air and low-pressure fluids from -20 to 80 °C. Variants for 6/4, 8/6, 10/8 and 12/10 mm tube.

Technical Specifications

  • Type: Slip-on union tee (tube-tube-tube)
  • Tube: 6/4, 8/6, 10/8 or 12/10 mm, among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Item No.: 1540
  • Brand: CAMOZZI

Applications and Uses

  • Branches on plastic tube lines
  • Compressed air systems and lines in workshops and industry
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL1540108
Manufacturer code
1540 10/8
