CAMOZZI FITTING ART. 1635

Code: CL16350214
€2.50
VAT excluded: €2.05
Size : 1/4"
In stock 15 pieces in stock Ships in 24/48 hours

Description

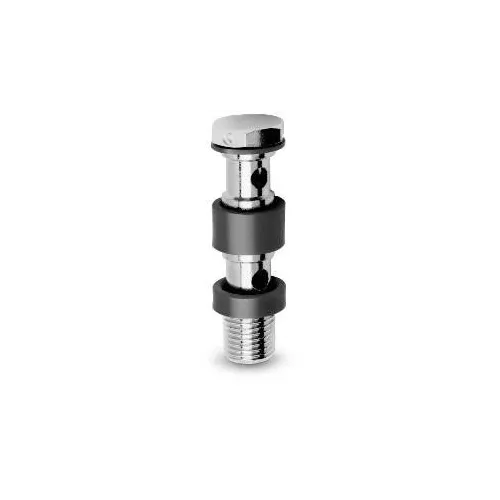

Long Double Hollow Screw Camozzi G1/4 - Item No. 1635 02-1/4


Camozzi Mod. 1635 02-1/4 long double hollow screw, an accessory of the Series 1000. It is the drilled screw that fixes swivel ring fittings on the component and lets the air pass through them; the long double version takes two stacked rings, so from a single G1/4 port two tubes can be run, each swivelling independently. The catalogue pairs it with the swivel fittings Mod. 6610, 6620, 1610, 1620, 2023 and 1170. G1/4 parallel thread, weight 33 g. Useful on manifolds and cylinders where an outlet needs to be split without adding a tee fitting.

Technical Specifications

  • Type: Long double hollow screw
  • Thread: G1/4 parallel
  • Pairing: Swivel rings Mod. 6610, 6620, 1610, 1620, 2023, 1170
  • Outlets: Two stacked rings
  • Weight: 33 g
  • Item No.: 1635 02-1/4
  • Brand: CAMOZZI

Applications and Uses

  • Splitting a threaded port with two swivel fittings
  • Manifolds, cylinders and valves with G1/4 port
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL16350214
Manufacturer code
1635 02-1/4\"
