CAMOZZI FITTING ART.1580

Code: CL1580108
€2.10
VAT excluded: €1.72
Size : HOSE 10/8
In stock 27 pieces in stock Ships in 24/48 hours

Description

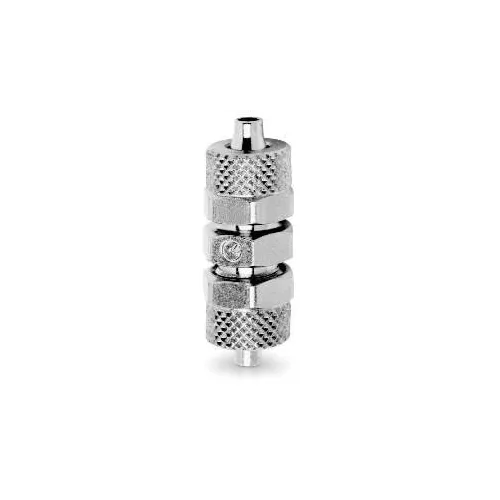

Slip-On Straight Union Fitting Camozzi Series 1000 - Item No. 1580


Camozzi Mod. 1580 straight union, from the Series 1000 slip-on fittings for plastic tubes. It joins two lengths of tube in a straight line: it is used to extend a line, repair a cut tube or change from one diameter to another with the reducing versions, such as 8/6-6/4 and 10/8-6/4. Each tube is pushed onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner even on PA and Hytrel polyester, with no risk of cuts. Body and nuts in nickel-plated brass, NBR O-ring. For compressed air and low-pressure fluids from -20 to 80 °C. Sizes among the variants.

Technical Specifications

  • Type: Slip-on straight union (tube-tube)
  • Tube: from 5/3 to 15/12.5 mm, also reducing, among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Item No.: 1580
  • Brand: CAMOZZI

Applications and Uses

  • Joining and repairing plastic tubes
  • Diameter reductions on pneumatic lines
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL1580108
Manufacturer code
1580 10/8
