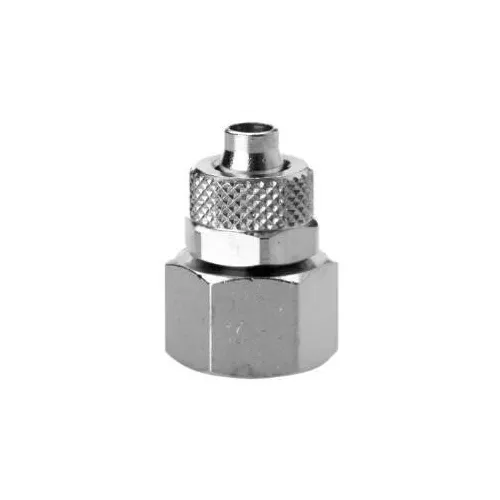

CAMOZZI FITTING ART.1463

Code: CL14636414
€3.50
VAT excluded: €2.87
Size : HOSE 6/4 - 1/4"
In stock 48 pieces in stock Ships in 24/48 hours

Description

Camozzi Series 1000 Straight Female Cylindrical Fitting - Item No. 1463


Camozzi Mod. 1463 straight female cylindrical fitting, from the Series 1000 slip-on range for plastic tubes. On one side it has the slip-on connection for the tube, on the other a cylindrical female G thread into which a nipple, a silencer or a component with a male connection can be screwed. The tube is slipped onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner; the profile of the cone avoids cutting it. Body and nut in nickel-plated brass, NBR O-ring. For compressed air and low-pressure fluids from -20 to 80 °C. Variants for 6/4 mm tube with G1/8, G1/4 or G3/8 thread.

Technical Specifications

  • Type: Straight female cylindrical slip-on
  • Tube: 6/4 mm
  • Female thread: G1/8, G1/4 or G3/8 (ISO 228), among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Connectable tubes: PA, PE, PU, reinforced PVC, rilsan, Hytrel polyester
  • Working temperature: from -20 to 80 °C
  • Item No.: 1463
  • Brand: CAMOZZI

Applications and Uses

  • Connecting tubes to components with a male connection
  • Extensions and adaptations on pneumatic circuits
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL14636414
Manufacturer code
1463 6/4-1/4
