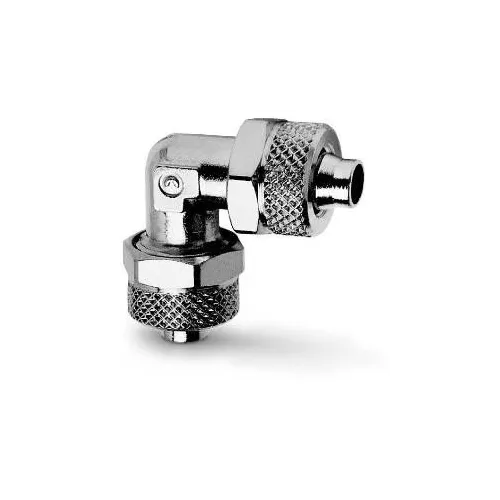

CAMOZZI FITTING ART.1550

Code: CL1550108
€2.50
VAT excluded: €2.05
Size : HOSE 10/8
In stock 39 pieces in stock Ships in 24/48 hours

Description

Slip-On Union Elbow Fitting Camozzi Series 1000 - Item No. 1550


Camozzi Mod. 1550 union elbow, from the Series 1000 slip-on fittings for plastic tubes. It connects two lengths of tube with a 90° bend, so the route changes direction in little space without bending the tube and without reducing its section. Each tube is pushed onto the guide cone and locked with the clamping nut, tightened by hand or with a spanner; the cone shape avoids cutting it even with rigid polyamide. Body and nuts in nickel-plated brass, NBR O-ring. For compressed air and low-pressure fluids from -20 to 80 °C. Variants for 6/4, 8/6, 10/8 and 12/10 mm tube.

Technical Specifications

  • Type: Slip-on union elbow (tube-tube)
  • Tube: 6/4, 8/6, 10/8 or 12/10 mm, among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Fluid: Compressed air and low-pressure fluids
  • Item No.: 1550
  • Brand: CAMOZZI

Applications and Uses

  • Changes of direction on plastic tube lines
  • Automatic machines, test benches and pneumatic panels
  • Narrow routes in panels and housings

More details

Brand
CAMOZZI
Code
CL1550108
Manufacturer code
1550 10/8

Attachments

Recommended accessories and spare parts

Reviews (0)
No customer reviews for the moment.
