CAMOZZI FITTING ART. 1600

Code: CL1600108
€4.00
VAT excluded: €3.28
Size : HOSE 10/8
In stock 28 pieces in stock Ships in 24/48 hours

Description

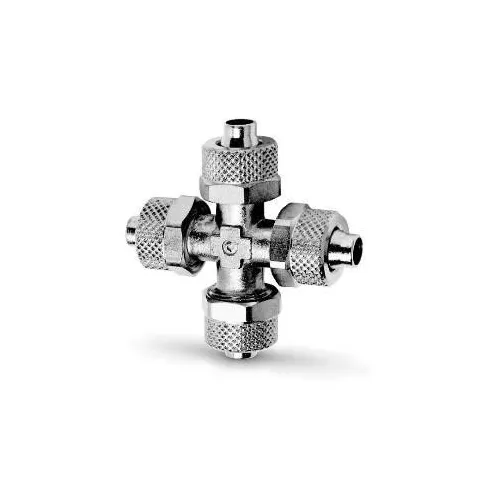

Intermediate Cross Fitting Camozzi Series 1000 - Item No. 1600


Camozzi Mod. 1600 intermediate cross, from the Series 1000 slip-on fittings for plastic tubes. It has four tube connections arranged in a cross: it joins four lengths of line at the same point and lets you distribute the air from one supply to three users without blocks or manifolds. Each tube is pushed onto the guide cone and locked with its own nut, tightened by hand or with a spanner even on rigid tubes. Body and nuts in nickel-plated brass with NBR O-ring; the cone shape avoids cuts to the tube. For compressed air and low-pressure fluids from -20 to 80 °C. Tube diameter can be selected among the variants.

Technical Specifications

  • Type: Slip-on intermediate cross (4-way)
  • Series: 1000 slip-on quick fittings
  • Tube: selectable among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Item No.: 1600
  • Brand: CAMOZZI

Applications and Uses

  • Air distribution to several users
  • Automatic machines, test benches and pneumatic panels
  • Control and service circuits

More details

Brand
CAMOZZI
Code
CL1600108
Manufacturer code
1600 10/8
