CAMOZZI FITTING ART. 1501

Code: CL150153M5
€1.20
VAT excluded: €0.98
Size : 5/3 M5
In stock 43 pieces in stock Ships in 24/48 hours

Description

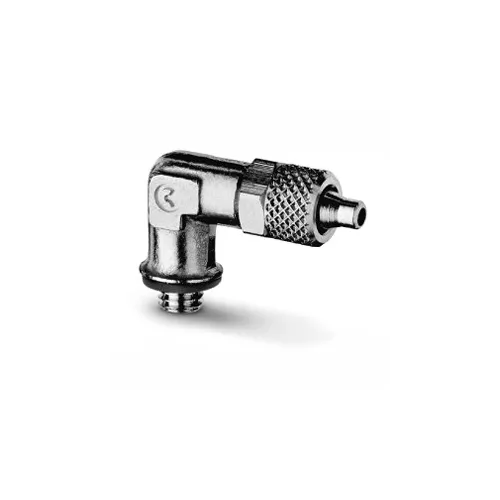

Metric Male Elbow Fitting Camozzi 5/3 - M5 - Item No. 1501 5/3-M5


Camozzi Mod. 1501 5/3-M5 fixed metric male elbow, from the Series 1000 slip-on fittings for plastic tubes. It is the miniature version of the male elbow: it connects a 5/3 mm tube at 90° to an M5 threaded hole, the typical size of micro valves, mini cylinders and pneumatic sensors. The tube is pushed onto the guide cone and locked with the clamping nut; the cone shape avoids cutting it even if rigid. Body and nut in nickel-plated brass, NBR O-ring, for compressed air and low-pressure fluids from -20 to 80 °C. It weighs only 10 g and is suited to the compact circuits of automatic machines.

Technical Specifications

  • Type: Slip-on fixed metric male elbow
  • Tube: 5/3 mm
  • Thread: M5
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Weight: 10 g
  • Item No.: 1501 5/3-M5
  • Brand: CAMOZZI

Applications and Uses

  • Mini cylinders, micro valves and sensors with M5 port
  • Compact pneumatic circuits of automatic machines
  • Instrumentation and test benches

More details

Brand
CAMOZZI
Code
CL150153M5
Manufacturer code
1500 5/3-M5

Attachments
