CAMOZZI FITTING ART. 1320

Code: CL132010
€0.40
VAT excluded: €0.33
Size : D. 10
In stock 91 pieces in stock Ships in 24/48 hours

Description

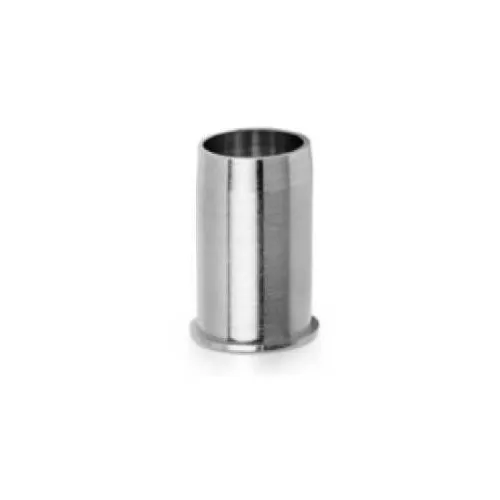

Reinforcing Insert for Camozzi Series 1000 Tube - Item No. 1320


Camozzi Mod. 1320 insert, an accessory for the universal olive fittings of Series 1000. It is pushed into the end of the plastic tube before fitting it into the fitting: it supports the tube wall from the inside when nut and olive are tightened, so the tube is not crushed and the seal remains secure over time. It is the necessary complement when soft plastic tubes are connected to universal fittings, which are designed to work with copper, brass and steel tubes too. The fittings in the series work up to 40 bar and have seats to DIN 3870-3861. Choose from the variants the size matching the tube diameter.

Technical Specifications

  • Type: Insert (reinforcing sleeve) for plastic tube
  • Series: 1000 universal olive
  • Use: Plastic tubes with olive fittings
  • Maximum pressure of the fittings: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Size: selectable from the variants
  • Item No.: 1320
  • Brand: CAMOZZI

Applications and Uses

  • Connecting plastic tubes to universal olive fittings
  • Compressed air and low-pressure fluid lines
  • Restoring joints with a crushed or loose tube

More details

Brand
CAMOZZI
Code
CL132010
Manufacturer code
1320 10
