FITTING ART. 1511

Code: CL151153M5
€1.00
VAT excluded: €0.82
Size : HOSE 5/3 - M5
In stock 46 pieces in stock Ships in 24/48 hours

Description

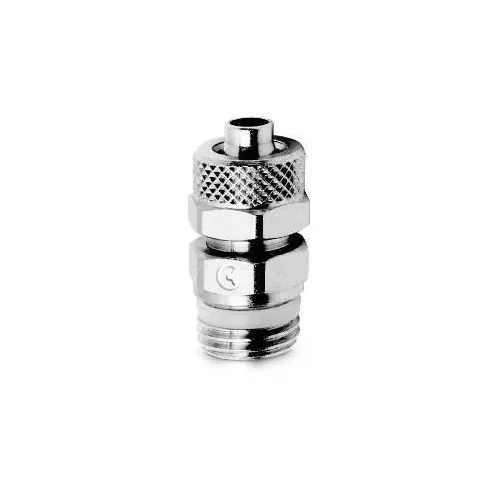

Sprint Metric Straight Male Fitting Camozzi Series 1000 - Item No. 1511


Camozzi Mod. 1511 metric straight male fitting, Sprint version of the Series 1000 slip-on fittings. The sizes with M5 and M6 thread rely on an O-ring on the thread for sealing: they screw by hand into the metric holes of micro valves, mini cylinders and sensors, without tape or sealant. The tube is pushed onto the guide cone and locked with the clamping nut; the cone shape avoids cuts. Body and nut in nickel-plated brass, NBR O-ring, temperature from -20 to 80 °C. Variants for 5/3 mm tube with M5 thread and for 6/4 mm tube with M5 or M6 thread.

Technical Specifications

  • Type: Slip-on Sprint metric straight male fitting
  • Thread seal: O-ring (M5 and M6 sizes)
  • Sizes: 5/3-M5, 6/4-M5, 6/4-M6, among the variants
  • Body and nut: Nickel-plated brass, NBR O-ring
  • Compatible tubes: PA, PE, PU, reinforced PVC, Rilsan, Hytrel polyester
  • Operating temperature: -20 to 80 °C
  • Item No.: 1511
  • Brand: CAMOZZI

Applications and Uses

  • Mini cylinders, micro valves and sensors with metric port
  • Compact pneumatic circuits
  • Instrumentation and test benches

More details

Brand
CAMOZZI
Code
CL151153M5
Manufacturer code
1511 5/3-M5

Attachments

Recommended accessories and spare parts

Reviews (0)
No customer reviews for the moment.
