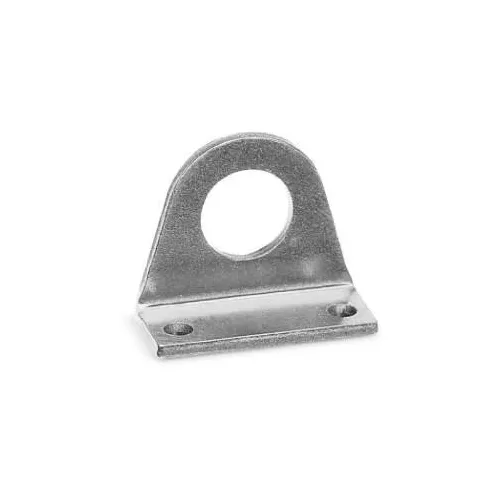

MINI CYLINDER MOUNTING B12-16

Code: CLB1216
€5.00
VAT excluded: €4.10
Size : B12-16
In stock 2 pieces in stock Ships in 24/48 hours

Description

Foot Mounting for ISO 6432 Mini Cylinders Camozzi Bore 12-16 - Item No. B-12-16


Camozzi Mod. B-12-16 foot mounting, accessory for DIN/ISO 6432 mini cylinders of the Series 16, 24 and 25 with 12 and 16 mm bore. The supply includes two feet and a Mod. V ring nut in galvanised steel: the feet slide onto the threaded end caps of the mini cylinder and are locked with the ring nut, so the cylinder is fixed parallel to the mounting surface with two screws per side. The fixing holes are 5.5 mm in diameter and the spacing of the feet follows the dimensions of the standard, so the mounting is interchangeable with other ISO 6432 cylinders of the same size. A sturdy, simple solution for equipment, jigs and small machines.

Technical Specifications

  • Type: Foot mounting
  • Cylinders: ISO 6432 mini cylinders Series 16, 24, 25
  • Bore: 12 and 16 mm
  • Material: Galvanised steel
  • Supply: 2 feet + 1 Mod. V ring nut
  • Fixing hole: 5.5 mm
  • Item No.: B-12-16
  • Brand: CAMOZZI

Applications and Uses

  • Floor or wall mounting of mini cylinders
  • Equipment, jigs and small machines
  • Replacing damaged mountings

More details

Brand
CAMOZZI
Code
CLB1216
Manufacturer code
B-12-16
