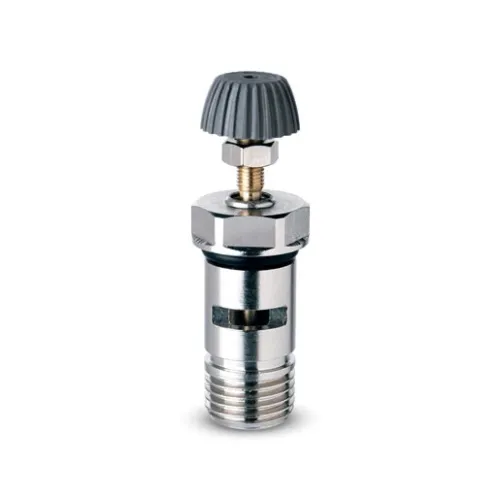

CAMOZZI FLOW RATE REGULATOR MVU

Series name MC

Component 3/2-WAY VALVE

Construction type Electro-pneumatic control

Size G3/8 - G1/2

Connections G3/8

Flange mounting

Mod. E

Two-way flow regulators.

Adjustment by means

of a hexagon key or a manually operated knob.

Connections G1/8, G1/4, G3/8, G1/2

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

Adjustable diaphragm pressure switches

Terminal module

Mod. CNVL-*H

Accessory for fixing the inductive sensor that detects the presence of the tool.

Supplied with: fixing screws

Sensor not included in the kit.

Materials:
Clamp in engineering polymer, O-ring in NBR, nuts and screws in galvanised steel.

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

CAMOZZI MOUNTING BRACKET MOD. C114 ST

Intermediate hinge mounting Mod. F

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Foot mounting mod B

Material of feet and ring nut: galvanised steel

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

One-way flow regulators

for mounting on single-acting

and double-acting cylinders.

Adjustment by means

of a hexagon key or a manually

operated knob.

Connections G1/8, G1/4, G3/8, G1/2

CAMOZZI SEAL KIT FOR CYLINDERS
