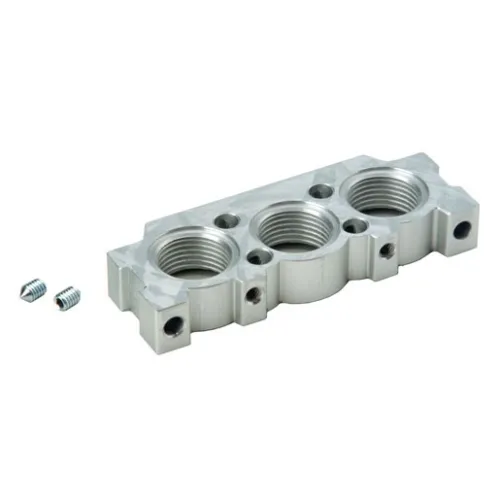

TERMINAL FOR MANIFOLD SERIES 3

Series name MC

Component 3/2-WAY VALVE

Construction type Electro-pneumatic control

Size G3/8 - G1/2

Connections G3/8

Foot mounting mod B

Material of feet and ring nut: galvanised steel

Intermediate hinge mounting Mod. F

Flange mounting

Mod. D

Base plates for 210,220

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Accessory for mounting valves on the cylinder

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

For mounting on valves.

Adjustment by means

of a screwdriver.

Foot mounting mod B

Material of feet and ring nut: galvanised steel

VSO, VSC series

VSO series ports: M5, G1/8, Ø4 cartridge

VSC series ports: G1/8, G1/4, G1/2

VSC and VSO series quick exhaust valves are commonly used to increase the speed of cylinders or to quickly depressurise tanks containing compressed air.

Model VSO 425-M5, VSO 426-04: particularly suitable for mounting on valves and solenoid valves with built-in ø 4 cartridge.

Model VSO 4-1/8: particularly suitable for direct mounting on the actuator connection. The incoming air from the fitting side (1) is used on the threaded side (2); exhaust (3) takes place through the holes on the side of the valve body.

Model VSC: particularly suitable for mounting directly, by means of a nipple, on the cylinder ports. Fitting a silencer on the exhaust is recommended.

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.
