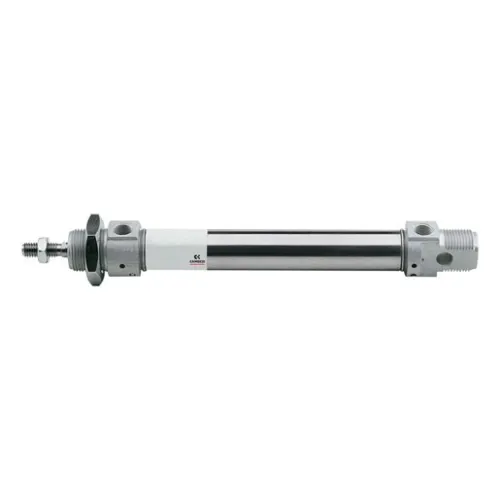

CAMOZZI MINI CYLINDER 24N2A25A250 BORE 25 STROKE 250

Code: CL24N2A25A250 EAN: 8051707138864
€49.20
VAT excluded: €40.41
In stock 1 piece in stock Ships in 24/48 hours

Description

ISO 6432 Mini Cylinder Camozzi Series 24 Bore 25 Stroke 250 - Item No. 24N2A25A250


Camozzi 24N2A25A250 mini cylinder from the Series 24, built to DIN/ISO 6432, double-acting and magnetic, with 25 mm bore and 250 mm stroke. The long stroke makes it suited to movements and feeding on compact equipment and machines. AISI 304 stainless steel barrel, 10 mm AISI 303 stainless steel rod with M10x1.25 thread, anodised aluminium end caps and fixed mechanical cushions. M22x1.5 threaded body for fixing with a ring nut, flange or feet; G1/8 ports. Pressure from 1 to 10 bar, temperature from 0 to 80 °C. The magnetic piston allows sensors to be fitted with the S-CST-04 adapter. Supplied with ring nut and rod nut.

Technical Specifications

  • Type: Double-acting mini cylinder, magnetic
  • Standard: DIN/ISO 6432
  • Series: 24
  • Bore: 25 mm
  • Stroke: 250 mm
  • Ports: G1/8
  • Rod: AISI 303 stainless steel, Ø10 mm, M10x1.25 thread
  • Threaded body: M22x1.5
  • Operating pressure: 1 to 10 bar
  • Item No.: 24N2A25A250
  • Brand: CAMOZZI

Applications and Uses

  • Long-stroke movements and feeding
  • Compact equipment and machines
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL24N2A25A250
EAN13
8051707138864
Manufacturer code
24N2A25A250
