FLOW REGULATOR TMCU

Code: CLTMCU9781210
€16.10
VAT excluded: €13.20
Size : TMCU 978-1/2-10
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

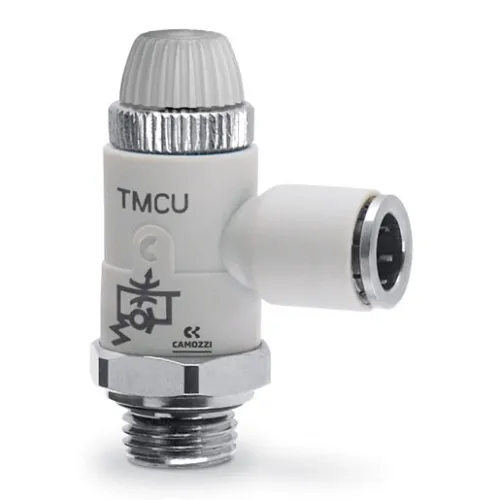

Swivel One-Way Flow Regulator Camozzi G1/2 Tube 10 - Item No. TMCU 978-1/2-10


Camozzi TMCU 978-1/2-10 swivel one-way flow regulator, for direct mounting on single- and double-acting cylinders. It screws with the G1/2 male thread into the cylinder port and the swivel body with connection for 10 mm tube is oriented in the required direction. The needle adjustment is made with the knob or with a hex key and, once set, it can be locked so it is not lost through vibration. Brass, engineering polymer and NBR materials. It works from 0.5 to 10 bar, temperature from 0 to 60 °C. 8 mm passage, nominal flow 1200 Nl/min with the needle open and 600 with the needle closed.

Technical Specifications

  • Type: Swivel one-way flow regulator for cylinders
  • Port: G1/2 male
  • Tube: Ø10 mm with plug-in connection
  • Adjustment: Needle, knob or hex key, lockable
  • Nominal flow: 1200 Nl/min open, 600 Nl/min closed
  • Operating pressure: 0.5 to 10 bar
  • Temperature: 0 to 60 °C
  • Materials: Brass, engineering polymer, NBR
  • Item No.: TMCU 978-1/2-10
  • Brand: CAMOZZI

Applications and Uses

  • Adjusting the speed of large-bore cylinders
  • Systems with vibration, thanks to the lock
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CLTMCU9781210
Manufacturer code
TMCU 978-1/2-10
