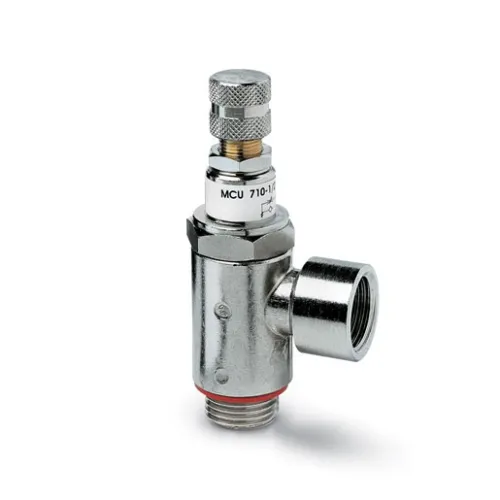

CAMOZZI REGULATING VALVE MCU

Code: CLMCU70418
€6.40
VAT excluded: €5.25
Size : 1/8
In stock 11 pieces in stock Ships in 24/48 hours

Description

One-Way Flow Regulator for Cylinders Camozzi MCU


Camozzi MCU one-way flow regulator, with hollow screw, to be screwed directly into the ports of single- and double-acting cylinders to adjust their speed. A swivel ring fitting is mounted on top of the regulator, to be ordered separately, which takes the tube in the required direction. The needle adjustment is made by hand with the knob, without tools, and in the other direction the air flows freely. Brass body and screw, NBR seals, pressure from 1 to 10 bar, temperature from 0 to 80 °C. Variants MCU 704-1/8 with 2 mm passage, MCU 706-1/4 with 4 mm passage and MCU 708-3/8 with 7 mm passage. Compatible swivel fittings: Mod. 6610, 1610 and similar.

Technical Specifications

  • Type: One-way flow regulator with hollow screw for cylinders
  • Ports: G1/8, G1/4 or G3/8, among the variants
  • Nominal passage: 2, 4 or 7 mm
  • Adjustment: Needle with manual knob
  • Swivel fitting: To be ordered separately (Mod. 6610, 6620, 1610, 1620)
  • Operating pressure: 1 to 10 bar (nominal 6)
  • Temperature: 0 to 80 °C
  • Materials: Brass, NBR seals
  • Item No.: MCU
  • Brand: CAMOZZI

Applications and Uses

  • Adjusting cylinder speed
  • Compact mounting on cylinder ports
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CLMCU70418
Manufacturer code
MCU 704-1/8
