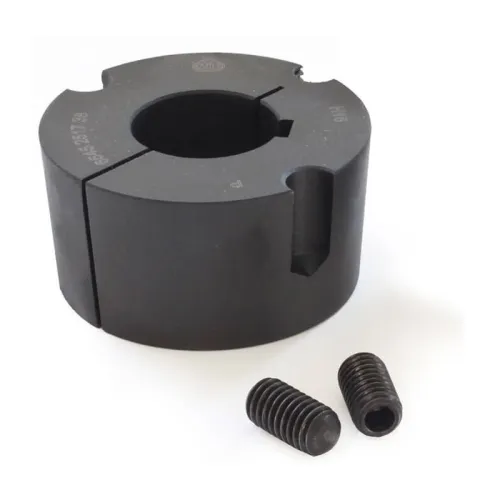

TAPER BUSH FOR PULLEY 3535

Code: PUB353545
€52.10
VAT excluded: €42.70
Size : 3535 45
In stock 1 piece in stock Ships in 24/48 hours

Description

Taper Bush for Pulley 3535 - Item No. 9090-45


Among the SER-SIT taper bushes, size 3535 has a length of 88.9 mm and an outside diameter of 127 mm. It is the element that locks shaft and pulley together: as the screws are tightened the taper closes and locks the hub on the shaft.

For finished bores SIT uses steel in some sizes; the catalogue coding example is BC 1610 F20, that is size and shaft diameter in millimetres. Tightening requires 3 screws of 1/2 inch, with a torque of 115 Nm.

Technical Specifications

  • Size: 3535
  • Family: SER-SIT taper clamping bushes
  • Length: 88.9 mm
  • Outside diameter: 127 mm
  • Clamping screws: 3
  • Screw thread: 1/2 inch
  • Tightening torque: 115 Nm
  • Bore: selectable among the variants
  • Item No.: 9090-45
  • Brand: SIT

Applications and Uses

  • Fixing of pulleys and transmission components
  • Industrial machinery
  • Drives with a finished-bore shaft

More details

Brand
SIT
Code
PUB353545
Manufacturer code
9090-45
