SER-SIT taper bush size 1008: length 22.3 mm, outside diameter 35 mm, 2 screws of 1/4 inch. For mounting pulleys on a shaft with a finished bore, with a simple hex key; bore selectable among the variants.
SIT cast iron pulley for SER-SIT taper bush, 4 A section grooves for A and SPA belts, diameters from 100 to 450 mm. Statically balanced, up to 35 m/s. Item No. PBT100SPA4.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

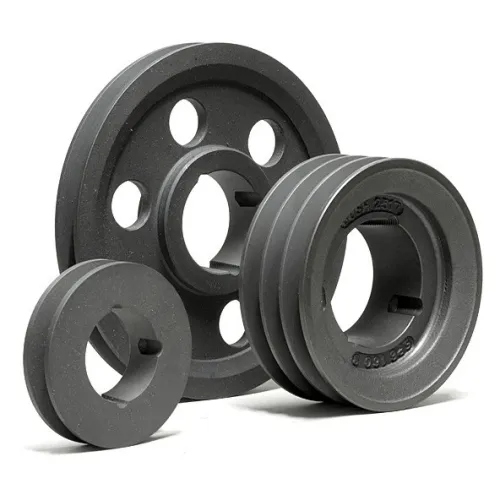

Taper Bush Pulley, A Section, 4 Grooves - Item No. PBT100SPA4
The pulley with 4 grooves of A section is fixed to the shaft with a SER-SIT taper bush and takes A and SPA belts. The taper bush allows the pulley to be fitted and removed in a short time with a hex key and eliminates the play between shaft and bore, avoiding fretting corrosion. The material is DIN 1691 GG20 - GG25 cast iron; PBT pulleys are statically balanced to ISO standards and suited to a peripheral speed of up to 35 m/s. Among the variants you choose the pitch diameter, from 100 to 450 mm, and the matching bush: 1615, 2012, 3020. For the bush, the SIT catalogue provides a code by size and shaft diameter (for example BC 1610 F20); the bushes are interchangeable with similar types in use worldwide.
Technical Specifications
- Type: PBT V-pulley for SER-SIT taper bush
- Material: cast iron DIN 1691 GG20 - GG25
- Section: A, A and SPA belts
- Number of grooves: 4
- Pitch diameter: 100 to 450 mm, to be chosen among the variants
- Bush: sizes 1615, 2012, 3020, to be chosen among the variants
- Grooves: according to DIN 2211 - ISO 4183
- Balancing: static according to ISO
- Maximum peripheral speed: 35 m/s
- Item No.: PBT100SPA4
- Brand: SIT
Applications and Uses
- Agricultural machinery and processing plants
- Drives that require frequent dismantling
- Replacement on existing V-belt drives
- Belt drives of electric motors and industrial machines
More details
- Brand
- SIT
- Code
- PUB1004A
- Manufacturer code
- PBT100SPA4
