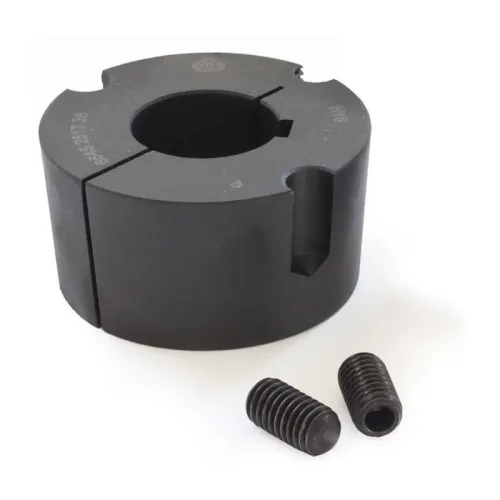

TAPER BUSH FOR PULLEY 1610

Code: PUB161016
€5.70
VAT excluded: €4.67
Size : 1610-16
In stock 4 pieces in stock Ships in 24/48 hours

Description

Taper Bush for Pulley 1610 - Item No. 4025-40


Among the SER-SIT taper bushes, size 1610 has a length of 25.4 mm and an outside diameter of 57 mm. It is the element that locks shaft and pulley together: as the screws are tightened the taper closes and locks the hub on the shaft.

For finished bores SIT uses steel in some sizes; the catalogue coding example is BC 1610 F20, that is size and shaft diameter in millimetres. Tightening requires 2 screws of 3/8 inch, with a torque of 20 Nm.

Technical Specifications

  • Size: 1610
  • Family: SER-SIT taper clamping bushes
  • Length: 25.4 mm
  • Outside diameter: 57 mm
  • Clamping screws: 2
  • Screw thread: 3/8 inch
  • Tightening torque: 20 Nm
  • Bore: selectable among the variants
  • Item No.: 4025-40
  • Brand: SIT

Applications and Uses

  • Fixing of pulleys and transmission components
  • Industrial machinery
  • Drives with a finished-bore shaft

More details

Brand
SIT
Code
PUB161016
Manufacturer code
4025-16

Attachments
