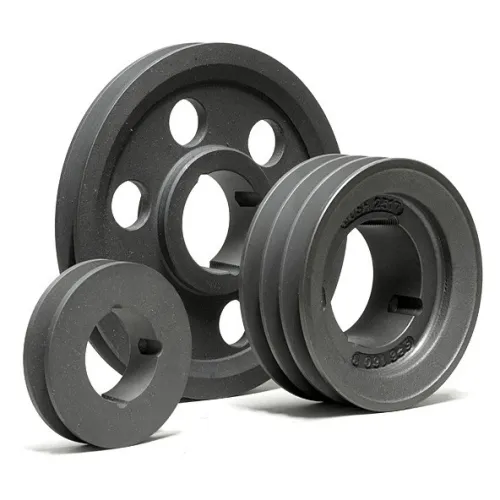

PULLEY FOR TAPER BUSH SECTION "A" 3 GROOVES

Code: PUB1003A
€13.60
VAT excluded: €11.15
Size : 100 3A/1610
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Taper Bush Pulley, A Section, 3 Grooves - Item No. PBT75SPA3


Pulley with 3 grooves, A section, with a hub for the SER-SIT taper bush: suited to A and SPA belts. The taper bush allows the pulley to be fitted and removed in a short time with a hex key and eliminates the play between shaft and bore, avoiding fretting corrosion. The material is DIN 1691 GG20 - GG25 cast iron; PBT pulleys are statically balanced to ISO standards and suited to a peripheral speed of up to 35 m/s. Among the variants you choose the pitch diameter, from 71 to 450 mm, and the matching bush: 1108, 1210, 1610, 2012, 2517, 3020. For the bush, the SIT catalogue provides a code by size and shaft diameter (for example BC 1610 F20); the bushes are interchangeable with similar types in use worldwide.

Technical Specifications

  • Type: PBT V-pulley for SER-SIT taper bush
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: A, A and SPA belts
  • Number of grooves: 3
  • Pitch diameter: 71 to 450 mm, to be chosen among the variants
  • Bush: sizes 1108, 1210, 1610, 2012, 2517, 3020, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Balancing: static according to ISO
  • Maximum peripheral speed: 35 m/s
  • Item No.: PBT75SPA3
  • Brand: SIT

Applications and Uses

  • Belt drives of electric motors and industrial machines
  • Compressors, pumps and fans
  • Agricultural machinery and processing plants
  • Drives that require frequent dismantling

More details

Brand
SIT
Code
PUB1003A
Manufacturer code
PBT100SPA3
