TAPER BUSH FOR PULLEY 1108

Code: PUB110819
€4.90
VAT excluded: €4.02
Size : 1108-19
In stock 2 pieces in stock Ships in 24/48 hours

Description

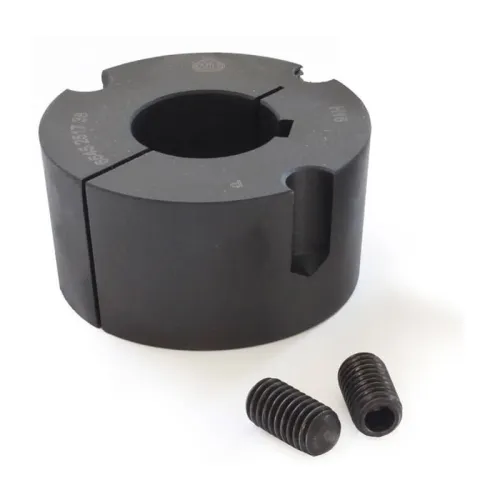

Taper Bush for Pulley 1108 - Item No. 2820-19


A ready-made finished bore, with no turning or drilling: this is the advantage of the SER-SIT 1108 taper bush. The taper fixing eliminates the play between shaft and bore and prevents fretting corrosion.

Size 1108 data: length 22.3 mm, outside diameter 38 mm, 2 screws of 1/4 inch, tightening torque 5.5 Nm. The bore is chosen among the variants and, according to SIT, the bush is interchangeable with similar ones in use worldwide.

Technical Specifications

  • Bush size: 1108
  • Fixing system: SER-SIT taper bush
  • Length: 22.3 mm
  • Outside diameter: 38 mm
  • Screws: 2, 1/4 inch thread
  • Screw key: 3 mm
  • Tightening torque: 5.5 Nm
  • Interchangeability: with similar taper bushes
  • Item No.: 2820-19
  • Brand: SIT

Applications and Uses

  • Pulleys designed for a bush
  • Fans and gearboxes
  • Industrial and agricultural machines

More details

Brand
SIT
Code
PUB110819
Manufacturer code
2820-19
