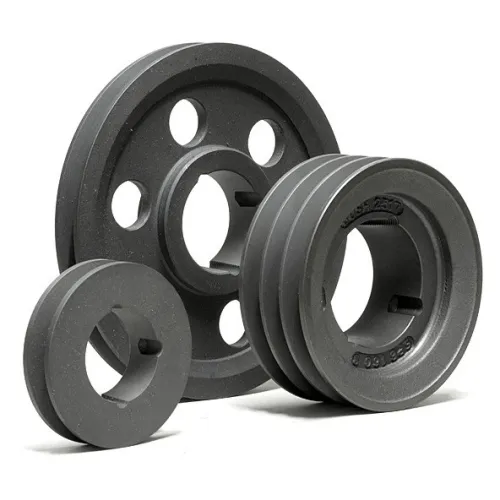

PULLEY FOR TAPER BUSH SECTION "B" 3 GROOVES

Code: PUB1003B
€17.90
VAT excluded: €14.67
Size : 100 3B/1610
In stock 2 pieces in stock Ships in 24/48 hours

Description

Taper Bush Pulley, B Section, 3 Grooves - Item No. PBT125SPB3


Pulley with 3 grooves, B section, with a hub for the SER-SIT taper bush: suited to B and SPB belts. Fixing with a taper bush requires no workshop machining on the shaft and removes the play between shaft and bore, preventing the formation of fretting rust. SIT PBT pulleys are made of DIN 1691 GG20 - GG25 cast iron, turned on numerically controlled machines, with ISO static balancing and a maximum peripheral speed of 35 m/s. The pitch diameter, from 100 to 355 mm, and the matching bush (1610, 2012, 2517, 3020) are chosen among the variants. The SER-SIT bush is identified by size and shaft diameter, for example BC 1610 F20, and is interchangeable with similar types in use worldwide.

Technical Specifications

  • Type: PBT V-pulley for SER-SIT taper bush
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: B, B and SPB belts
  • Number of grooves: 3
  • Pitch diameter: 100 to 355 mm, to be chosen among the variants
  • Bush: sizes 1610, 2012, 2517, 3020, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Balancing: static according to ISO
  • Maximum peripheral speed: 35 m/s
  • Item No.: PBT125SPB3
  • Brand: SIT

Applications and Uses

  • Compressors, pumps and fans
  • Agricultural machinery and processing plants
  • Drives that require frequent dismantling

More details

Brand
SIT
Code
PUB1003B
Manufacturer code
PBT100SPB3

Attachments
