V-BELT SECTION "B" FROM 61 TO 99

H 150 – Precision toothed belt with back width of 1,5 inches (38.1 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for synchronous drives.

H 100 – Precision toothed belt with back width of 1 inch (25.4 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for reliable synchronous drives.

The section “Z” V-belt is a trapezoidal profile power transmission belt used in light mechanical and industrial applications. Section Z identifies a compact belt, suitable for small-diameter pulleys and for systems where reduced size and good transmission efficiency are required. Various pitch lengths (lengths) are available to suit a wide range of applications.

The section “SPB” V-belt is an industrial V-belt belonging to the SIT SP range, designed for medium-to-high power transmission applications. Compared with traditional section B belts, the SPB offers greater stability, higher efficiency and longer service life, thanks to an optimised profile and construction.

The section “A” V-belts – with sizes from A61 to A98 – are classic V‑belt drive belts used to transfer power between shafts by means of pulleys with a compatible groove profile. Section A indicates a trapezoidal profile with standard dimensions of approximately 13 mm top width and 8 mm height, compliant with ISO/DIN standards for V‑belts. The variants A61…A98 refer to the different pitch lengths of the belt, expressed in standard codes, and are available in various lengths in millimetres for many mechanical and industrial applications.

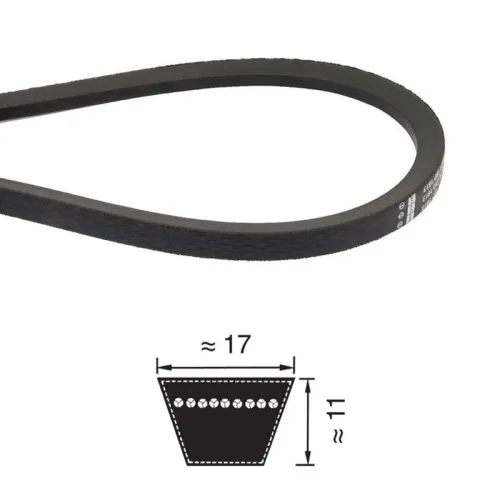

The section “B” V-belts — with designations ranging from B100 to B300 — are classic V-profile drive belts designed to transfer power in mechanical and industrial applications. The section “B” indicates a standard trapezoidal profile with a back width of approximately 17 mm and a height of approximately 11 mm, compliant with international standards for V‑belts. The variants B100…B300 refer to increasing pitch lengths, expressed as a code, and allow adaptation to different requirements for transmission between shafts by means of compatible pulleys.

The section “C” V-belts — in sizes from C43 to C99 — are standard “V” profile mechanical power transmission belts, designed to transfer power between grooved pulleys in various types of industrial machinery and mechanical applications. The “C” section indicates a trapezoidal profile with standard dimensions of approximately 22 mm top width and 14 mm height according to technical standards for V‑belts. These belts in the C43…C99 range cover a series of increasing pitch lengths, expressed in international standard numbers and useful for easily identifying the correct size.

The Eagle Purple 64 toothed belt is a high-performance synchronous drive belt, part of the Silent Sync® / Eagle range designed for industrial and mechanical applications where precision, quiet running and reliability are required. The number 64 indicates the belt width in millimetres (64 mm). This belt is available in several variants with lengths expressed in millimetres, to suit the power transmission and synchronised motion requirements of your systems.

The section A V-belt — with sizes ranging from A100 to A196 — is a drive belt with a standard V section designed for mechanical and industrial applications. The designation “A” indicates the belt profile according to international standards (top width of approximately 13 mm and height of approximately 8 mm) and the variants A100…A196 refer to the different pitch lengths expressed in millimetres. These belts are suitable for transmitting power between shafts by means of pulleys with a compatible profile, ensuring reliability and durability.

H 300 – Precision toothed belt with back width of 3 inches (76.2 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for synchronous drives on large machinery.

The section “SPZ” V-belt is an industrial V-belt belonging to the SIT SP series, designed for light and medium-light power transmissions. Compared with traditional section Z belts, the SPZ guarantees greater operating stability, better efficiency and longer service life, thanks to a more advanced construction.

The perforated V-belt is a standard section V‑belt intended for customisable industrial and mechanical applications. Thanks to the regular holes along the back and the dedicated joints, the belt can be made to any length and is sold by the metre, so that it fits any plant or transmission system perfectly.

The Eagle Yellow 16 toothed belt is a high-performance synchronous belt, part of the Silent Sync® / Eagle line, designed for quiet, precise and reliable mechanical drives. The number 16 indicates the belt width in millimetres (16 mm). The belt is available in several variants with lengths expressed in millimetres, to suit a wide range of industrial and automation applications.

The toothed belt L 075 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “L 075” indicates the belt section, with back width of 0,75 inch (19.05 mm) and tooth pitch of 0,375 inch (9,525 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The section “D” V-belts — in sizes from D110 to D285 — are classic “V” profile power transmission belts, designed to transfer power between shafts by means of grooved pulleys. The “D” section identifies a wide-band profile, with a standard top width of approximately 36.5 mm and a height of approximately 21.8 mm according to international standards, ideal for transmissions with heavier loads than sections A, B or C. The D110…D285 variants cover different belt pitch lengths to suit mechanical applications of different configurations.

The toothed belt XL 037 is a precision mechanical belt for reliable synchronous drives. The designation “XL 037” indicates the belt section, with back width of 0,25 inch (6.35 mm) and tooth pitch of 0,2 inch (5.08 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.
