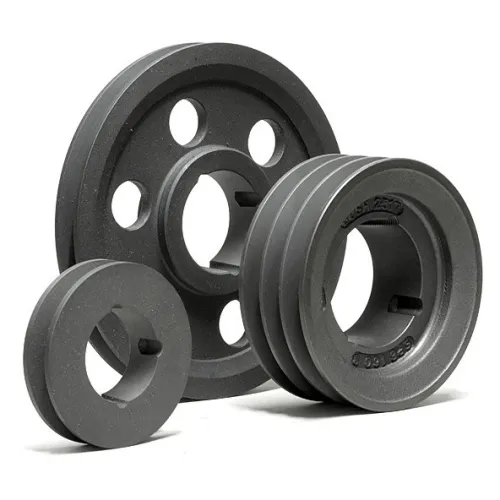

PULLEY FOR TAPER BUSH SECTION "B" 1 GROOVE

Code: PUB1001B
€11.30
VAT excluded: €9.26
Size : 100 1B/1610
In stock 2 pieces in stock Ships in 24/48 hours

Description

Taper Bush Pulley, B Section, 1 Groove - Item No. PBT90SPB1


Cast iron V-pulley with 1 groove of B section, designed to be mounted with the SER-SIT taper bush; it accepts B and SPB belts. Fixing with a taper bush requires no workshop machining on the shaft and removes the play between shaft and bore, preventing the formation of fretting rust. The DIN 1691 GG20 - GG25 cast iron is turned on numerically controlled machines; static balancing is to ISO and the permitted peripheral speed reaches 35 m/s. The variants provide pitch diameters from 90 to 280 mm, each with its own bush size (1210, 1610, 2012). For the bush, the SIT catalogue provides a code by size and shaft diameter (for example BC 1610 F20); the bushes are interchangeable with similar types in use worldwide.

Technical Specifications

  • Type: PBT V-pulley for SER-SIT taper bush
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: B, B and SPB belts
  • Number of grooves: 1
  • Pitch diameter: 90 to 280 mm, to be chosen among the variants
  • Bush: sizes 1210, 1610, 2012, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Balancing: static according to ISO
  • Maximum peripheral speed: 35 m/s
  • Item No.: PBT90SPB1
  • Brand: SIT

Applications and Uses

  • Agricultural machinery and processing plants
  • Drives that require frequent dismantling
  • Replacement on existing V-belt drives

More details

Brand
SIT
Code
PUB1001B
Manufacturer code
PBT100SPB1

Attachments
