SIT cast iron pulley for SER-SIT taper bush, 3 B section grooves for B and SPB belts, diameters from 100 to 355 mm. Statically balanced, up to 35 m/s. Item No. PBT125SPB3.
SER-SIT taper bush size 1008: length 22.3 mm, outside diameter 35 mm, 2 screws of 1/4 inch. For mounting pulleys on a shaft with a finished bore, with a simple hex key; bore selectable among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

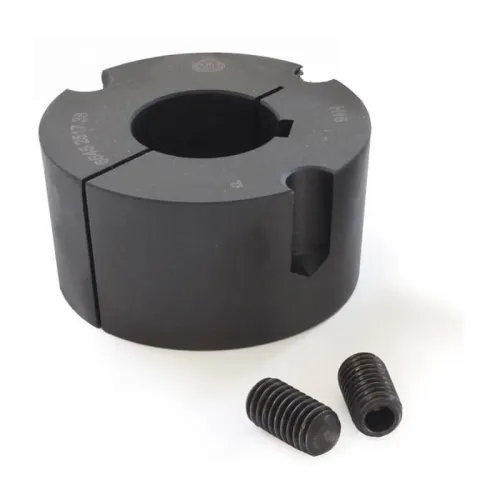

Taper Bush for Pulley 1008 - Item No. 2520-14
The 1008 taper bush belongs to the SER-SIT system, which allows pulleys and many other transmission components to be fitted and removed in very short times, with a simple hex key. The size 1008 must match that required by the pulley.
22.3 mm long and with an outside diameter of 35 mm, it is fixed with 2 screws of 1/4 inch (3 mm key, tightening torque 5.5 Nm). The number after the size, in the variants, is the diameter of the finished bore in millimetres.
Technical Specifications
- Type: Taper clamping bush
- System: SER-SIT
- Size: 1008
- Length: 22.3 mm
- Outside diameter: 35 mm
- Clamping screws: 2 of 1/4 inch, 3 mm key
- Screw tightening torque: 5.5 Nm
- Bore: selectable among the variants
- Item No.: 2520-14
- Brand: SIT
Applications and Uses
- Quick mounting of pulleys on a shaft
- Industrial machines and fans
- Pumps and compressors
More details
- Brand
- SIT
- Code
- PUB100814
- Manufacturer code
- 2520-14
