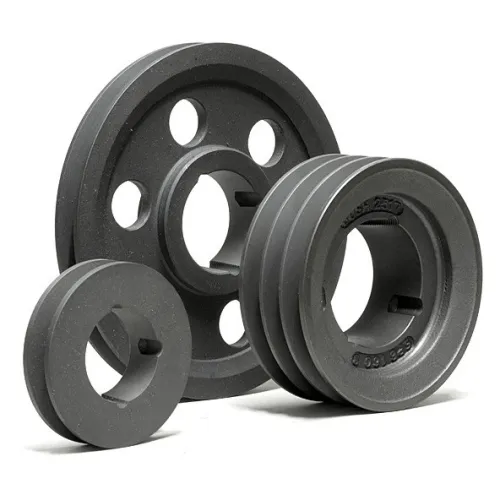

PULLEY FOR TAPER BUSH SECTION "A" 1 GROOVE

Code: PUB1001A
€9.70
VAT excluded: €7.95
Size : 100 1A/1610
In stock 3 pieces in stock Ships in 24/48 hours

Description

Taper Bush Pulley, A Section, 1 Groove - Item No. PBT90SPA1


Pulley with 1 groove, A section, with a hub for the SER-SIT taper bush: suited to A and SPA belts. Fixing with a taper bush requires no workshop machining on the shaft and removes the play between shaft and bore, preventing the formation of fretting rust. SIT PBT pulleys are made of DIN 1691 GG20 - GG25 cast iron, turned on numerically controlled machines, with ISO static balancing and a maximum peripheral speed of 35 m/s. The variants provide pitch diameters from 63 to 450 mm, each with its own bush size (1108, 1210, 1610, 2012). For the bush, the SIT catalogue provides a code by size and shaft diameter (for example BC 1610 F20); the bushes are interchangeable with similar types in use worldwide.

Technical Specifications

  • Type: PBT V-pulley for SER-SIT taper bush
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: A, A and SPA belts
  • Number of grooves: 1
  • Pitch diameter: 63 to 450 mm, to be chosen among the variants
  • Bush: sizes 1108, 1210, 1610, 2012, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Balancing: static according to ISO
  • Maximum peripheral speed: 35 m/s
  • Item No.: PBT90SPA1
  • Brand: SIT

Applications and Uses

  • Compressors, pumps and fans
  • Agricultural machinery and processing plants
  • Drives that require frequent dismantling
  • Replacement on existing V-belt drives

More details

Brand
SIT
Code
PUB1001A
Manufacturer code
PBT100SPA1
