CAST IRON MONOBLOCK PULLEY SECTION B 2 GROOVES

Code: PU1122B
€21.20
VAT excluded: €17.38
Size : 112 2 B
In stock 3 pieces in stock Ships in 24/48 hours

Description

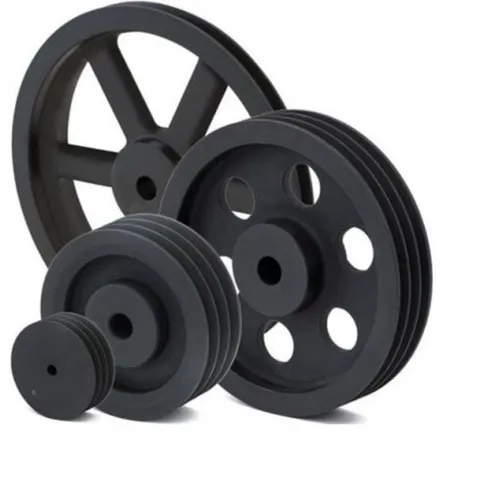

One-piece Cast Iron Pulley, B Section, 2 Grooves - Item No. PT112SPB2


One-piece cast iron V-pulley with solid hub and 2 grooves, B section: it takes B and SPB belts. The groove is made according to DIN 2211 - ISO 4183, with numerically controlled machining and an angle of 34 or 38 degrees depending on the pitch diameter. Made of DIN 1691 GG20 - GG25 cast iron, with a surface treatment that protects it from oxidation, the pulley works at up to 35 m/s peripheral speed. The pitch diameter, from 60 to 450 mm, is selected among the variants. Since the bore is not finished, the solid hub must be bored and keyed to the size of the shaft; in the SIT catalogue these pulleys are not balanced.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: B, B and SPB belts
  • Number of grooves: 2
  • Pitch diameter: 60 to 450 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT112SPB2
  • Brand: SIT

Applications and Uses

  • Fans and extractors
  • Replacement on existing V-belt drives
  • V-belt drives on industrial machines

More details

Brand
SIT
Code
PU1122B
Manufacturer code
PT112SPB2
