SER-SIT taper bush size 1008: length 22.3 mm, outside diameter 35 mm, 2 screws of 1/4 inch. For mounting pulleys on a shaft with a finished bore, with a simple hex key; bore selectable among the variants.
SIT PBT V-pulley with SER-SIT taper bush: 4 B section grooves, pitch diameters from 125 to 300 mm, statically balanced cast iron. Item No. PBT125SPB4.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

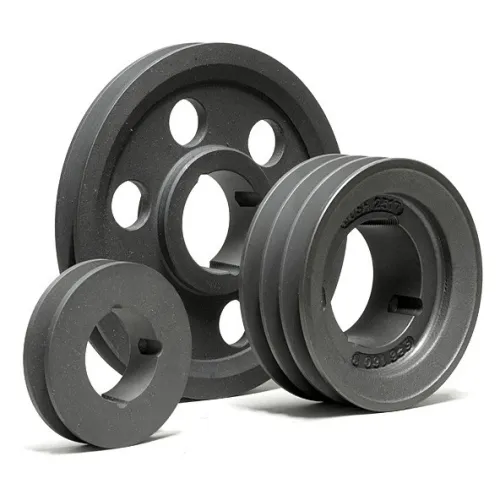

Taper Bush Pulley, B Section, 4 Grooves - Item No. PBT125SPB4
Pulley with 4 grooves, B section, with a hub for the SER-SIT taper bush: suited to B and SPB belts. With the bush, fixing to the shaft is quick and free of play, which prevents fretting corrosion between shaft and bore; a hex key is all that is needed. The DIN 1691 GG20 - GG25 cast iron is turned on numerically controlled machines; static balancing is to ISO and the permitted peripheral speed reaches 35 m/s. The pitch diameter, from 125 to 300 mm, and the matching bush (2012, 2517, 3020, 3535) are chosen among the variants. The SER-SIT bush is identified by size and shaft diameter, for example BC 1610 F20, and is interchangeable with similar types in use worldwide.
Technical Specifications
- Type: PBT V-pulley for SER-SIT taper bush
- Material: cast iron DIN 1691 GG20 - GG25
- Section: B, B and SPB belts
- Number of grooves: 4
- Pitch diameter: 125 to 300 mm, to be chosen among the variants
- Bush: sizes 2012, 2517, 3020, 3535, to be chosen among the variants
- Grooves: according to DIN 2211 - ISO 4183
- Balancing: static according to ISO
- Maximum peripheral speed: 35 m/s
- Item No.: PBT125SPB4
- Brand: SIT
Applications and Uses
- Compressors, pumps and fans
- Agricultural machinery and processing plants
- Drives that require frequent dismantling
- Replacement on existing V-belt drives
More details
- Brand
- SIT
- Code
- PUB1254B
- Manufacturer code
- PBT125SPB4
