CAMOZZI FITTING ART.2033

Code: CL203314
€3.80
VAT excluded: €3.11
Size : 1/4"-1/4"-1/4
In stock 16 pieces in stock Ships in 24/48 hours

Description

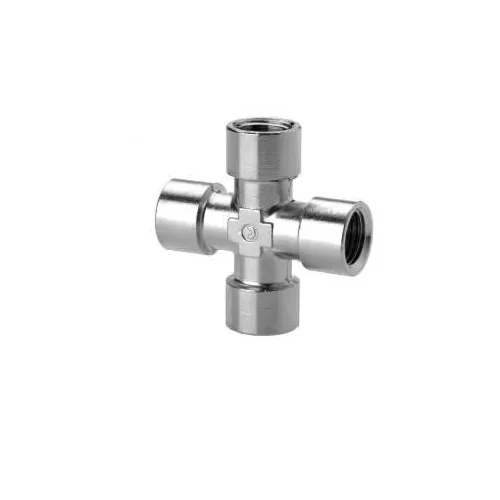

Parallel Female Cross Fitting Camozzi Series 2000 - Item No. 2033


Camozzi Mod. 2033 female cross, from the Series 2000 of nickel-plated brass accessory fittings. It has four parallel G female ports of the same size, to ISO 228, arranged in a cross: with nipples and male fittings it makes a small manifold that receives the air on one side and distributes it to three users, or it connects a pressure gauge, a pressure switch and an exhaust at a single point of the line. The compact body is tightened with a spanner. The Series 2000 includes straight, L, T and cross joints for compressed air systems, with operating temperature from -40 to 120 °C. Sizes 1/8, 1/4 and 3/8 among the variants.

Technical Specifications

  • Type: Female cross (four equal female ports)
  • Threads: G parallel (ISO 228)
  • Sizes: G1/8, G1/4, G3/8, among the variants
  • Material: Nickel-plated brass
  • Operating temperature: -40 to 120 °C
  • Item No.: 2033
  • Brand: CAMOZZI

Applications and Uses

  • Small distribution manifolds
  • Connecting pressure gauges, pressure switches and exhausts
  • Compressed air systems and lines in workshops and industry

More details

Brand
CAMOZZI
Code
CL203314
Manufacturer code
2033 1/4

Attachments

Recommended accessories and spare parts

CAMOZZI MALE PLUG ART. 2611

€1.72
AVAILABLE
Availability: 57 In stock

Camozzi Mod. 2611 parallel male plug in nickel-plated brass: it tightly seals an unused G female threaded hole. Series 2000, sizes 1/8, 1/4, 3/8 and 1/2 among the variants.

CAMOZZI NIPPLE ART. 2501

€2.09
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI TAPERED NIPPLE ART. 2500

€2.00
AVAILABLE
Availability: 22 In stock

Camozzi Mod. 2500 tapered nipple: double male with equal tapered R threads, in nickel-plated brass, to join two female threaded components in compressed air systems. Series 2000. Sizes among the variants.
