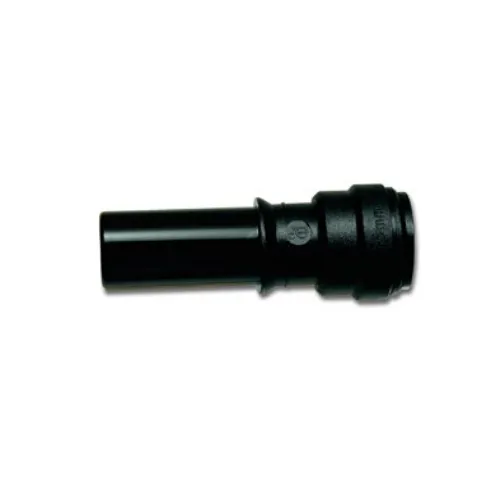

PVC REDUCER TAILPIECE FITTING 22-15

Code: TRJR2215
€5.60
VAT excluded: €4.59
Size : 22-15
In stock 7 pieces in stock Ships in 24/48 hours

Description

Spigot Reducer 22-15 Spiralflex for Aluminium Pipe - Item No. JR2215


Spiralflex JR2215 spigot reducer, from the series of acetal resin push-fit fittings for compressed air lines in anodised aluminium pipe. It is fitted by hand: the pipe, marked at the depth indicated by the manufacturer, enters as far as the end stop, where the collet with stainless steel teeth grips it and the O-ring seals on the outside diameter. With these fittings the working pressure reaches 10 bar. The JR2215 makes it possible to step down from the 22 mm pipe to the 15 mm one, for example from the main line to a thinner drop, by fitting into a push-fit fitting.

Technical Specifications

  • Type: Spigot reducer
  • Size: 22 - 15 mm
  • Material: Acetal resin
  • Connection: Push-in, stainless steel collet and O-ring
  • Maximum pressure with push-fit fittings: 10 bar
  • Item No.: JR2215
  • Brand: SPIRALFLEX

Applications and Uses

  • Transition from the main line to drops
  • Air systems with pipes of different diameters
  • Air systems for workshops and laboratories

More details

Brand
SPIRALFLEX
Code
TRJR2215
Manufacturer code
JR 2215
