CAMOZZI FITTING ART. 2601

Code: CL26011212
€2.20
VAT excluded: €1.80
Size : 1/2" HOSE 12
In stock 19 pieces in stock Ships in 24/48 hours

Description

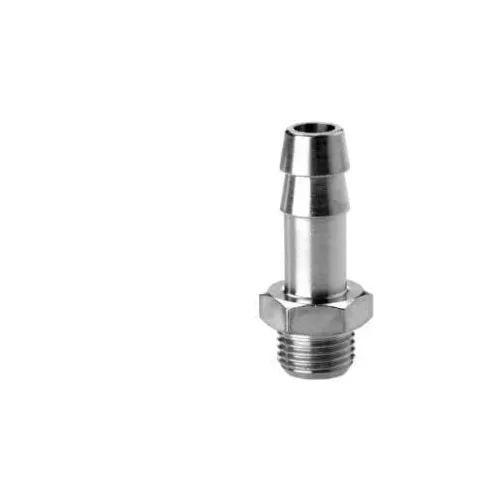

Parallel Male Hose Barb Camozzi Series 2000 - Item No. 2601


Camozzi Mod. 2601 parallel male hose barb, from the Series 2000 of nickel-plated brass accessory fittings. One side has the barbed tail onto which the rubber or soft plastic hose is pushed, to be secured with a hose clip; the other has a parallel G male thread, to ISO 228, to be screwed onto taps, regulators, manifolds or tools. The code gives the tail diameter first and then the thread, for example 9-1/4. The Series 2000 includes joints for compressed air systems with operating temperature from -40 to 120 °C. Variants with tail from 8 to 17 and thread from 1/8 to 1/2.

Technical Specifications

  • Type: Hose barb with male thread
  • Thread: G parallel (ISO 228)
  • Tail: Barbed, for rubber hose
  • Sizes: tail from 8 to 17, thread from 1/8 to 1/2, among the variants
  • Material: Nickel-plated brass
  • Operating temperature: -40 to 120 °C
  • Item No.: 2601
  • Brand: CAMOZZI

Applications and Uses

  • Connecting rubber hoses to taps and manifolds
  • Blowing and service lines
  • Connections for flexible workshop hoses

More details

Brand
CAMOZZI
Code
CL26011212
Manufacturer code
2601 12-1/2
