CAMOZZI FITTING ART. 2531

Code: CL253118M5
€0.56
VAT excluded: €0.46
Size : M.1/8"F. M5
In stock 36 pieces in stock Ships in 24/48 hours

Description

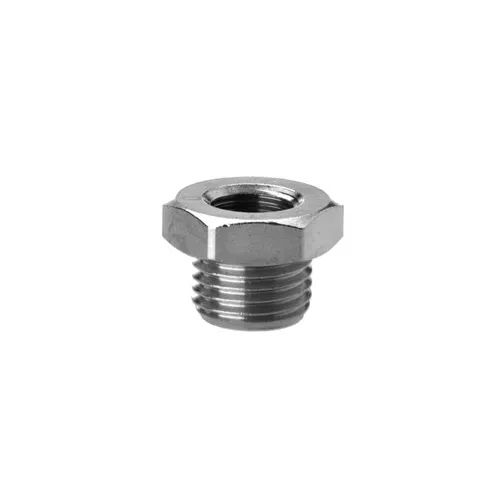

Male G1/8 - Female M5 Reducer Camozzi - Item No. 2531 1/8-M5


Camozzi Mod. 2531 1/8-M5 parallel reducer, from the Series 2000 of nickel-plated brass accessory fittings. It has a G1/8 male thread, to ISO 228, and an M5 female thread with through thread: it screws into a 1/8 port and reduces it to the M5 size typical of micro fittings, sensors, nozzles and mini components. The format is very compact and the weight is 8 g. Useful when a 1/8 manifold or valve must supply a miniaturised component without changing the whole block. The Series 2000 includes joints for compressed air systems with operating temperature from -40 to 120 °C.

Technical Specifications

  • Type: Reducer, male - female
  • Threads: Male G1/8 (ISO 228), female M5 through
  • Material: Nickel-plated brass
  • Operating temperature: -40 to 120 °C
  • Weight: 8 g
  • Item No.: 2531 1/8-M5
  • Brand: CAMOZZI

Applications and Uses

  • Connecting M5 micro fittings to 1/8 ports
  • Sensors, nozzles and pneumatic mini components
  • Automatic machines and instrumentation

More details

Brand
CAMOZZI
Code
CL253118M5
Manufacturer code
2531 1/8-M5

Attachments
