CAMOZZI FITTING 5180 EUROPEAN PROFILE

Code: CL518038
€2.20
VAT excluded: €1.80
Size : MALE 3/8"
In stock 19 pieces in stock Ships in 24/48 hours

Description

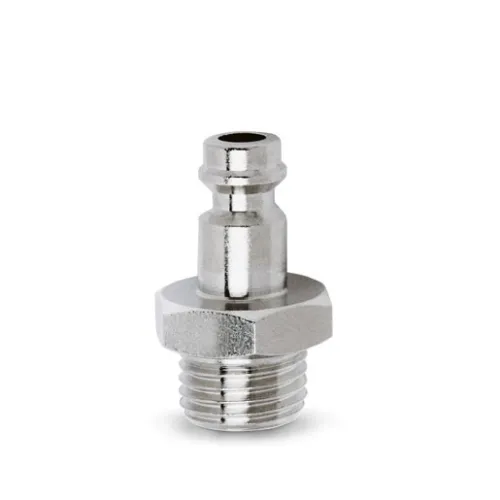

G3/8 Male Quick Plug Camozzi European Profile - Item No. 5180 3/8


Camozzi Mod. 5180 3/8 male plug, from the Series 5000 of quick-connect couplings, European profile with 7 mm nominal diameter, compatible with Cejn Series 320. It is the plug with G3/8 male thread to be screwed onto a pneumatic tool, a fitting or a hose reel, to connect it to the European profile quick couplings of the system. The connection is made and released without depressurising. NBR seals, parallel GAS thread ISO 228, operating pressure from -0.99 to 12 bar with nominal 6 bar, temperature from 0 to 80 °C, from -20 °C with dry air. Weight 26 g.

Technical Specifications

  • Type: Threaded male quick plug
  • Profile: European, nominal diameter 7 mm
  • Compatibility: Cejn Series 320
  • Thread: G3/8 male, ISO 228
  • Seals: NBR
  • Operating pressure: -0.99 to 12 bar (nominal 6 bar)
  • Operating temperature: 0 to 80 °C (from -20 °C with dry air)
  • Weight: 26 g
  • Item No.: 5180 3/8
  • Brand: CAMOZZI

Applications and Uses

  • Connecting pneumatic tools to European profile couplings
  • Hose reels and connecting hoses
  • Workshops and production lines

More details

Brand
CAMOZZI
Code
CL518038
Manufacturer code
5180 3/8
