CAMOZZI FITTING ART.5055 MIGNON CONNECTION

Code: CL505564
€6.40
VAT excluded: €5.25
Size : HOSE 6X4
In stock 27 pieces in stock Ships in 24/48 hours

Description

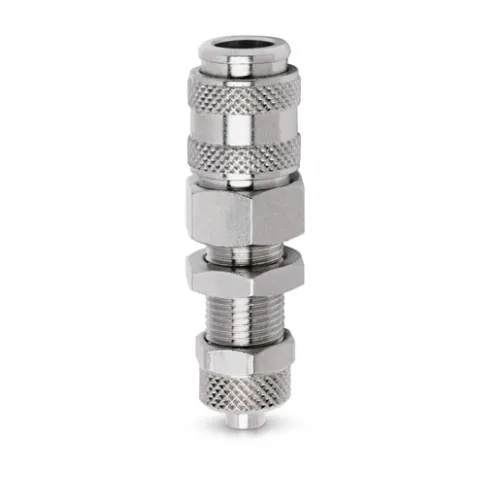

Slip-On Bulkhead Quick Coupling Camozzi Mini Profile 6/4 - Item No. 5055 6/4


Camozzi Mod. 5055 6/4 slip-on bulkhead coupling, from the Series 5000 of quick-connect couplings, Mini profile with 5 mm nominal diameter, compatible with Rectus Series 21-90 and Legris 21. It is fixed in a hole in a panel or cabinet and provides a female quick socket on the outside, while the 6/4 mm plastic tube is pushed on the inside. It is the solution to bring a quick connection point to the front of a machine or bench. Poppet quick-release valve, nickel-plated brass body, NBR seals, pressure from -0.99 to 12 bar, temperature from 0 to 80 °C. Weight 44 g.

Technical Specifications

  • Type: Slip-on female bulkhead quick coupling
  • Profile: Mini, nominal diameter 5 mm
  • Compatibility: Rectus Series 21-90, Legris 21
  • Tube: 6/4 mm
  • Materials: Nickel-plated brass, NBR seals
  • Operating pressure: -0.99 to 12 bar (nominal 6 bar)
  • Operating temperature: 0 to 80 °C (from -20 °C with dry air)
  • Weight: 44 g
  • Item No.: 5055 6/4
  • Brand: CAMOZZI

Applications and Uses

  • Quick sockets on machine panels and test benches
  • Pneumatic panels and distribution cabinets
  • Blowing and inspection stations

More details

Brand
CAMOZZI
Code
CL505564
Manufacturer code
5055 6/4

Attachments

Recommended accessories and spare parts

CAMOZZI MALE PLUG ART. 2611

€1.72
AVAILABLE
Availability: 57 In stock

Camozzi Mod. 2611 parallel male plug in nickel-plated brass: it tightly seals an unused G female threaded hole. Series 2000, sizes 1/8, 1/4, 3/8 and 1/2 among the variants.

CAMOZZI NIPPLE ART. 2501

€2.09
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI TAPERED NIPPLE ART. 2500

€2.00
AVAILABLE
Availability: 22 In stock

Camozzi Mod. 2500 tapered nipple: double male with equal tapered R threads, in nickel-plated brass, to join two female threaded components in compressed air systems. Series 2000. Sizes among the variants.
