CAMOZZI FITTING ART. 2511

Code: CL25111412
€1.90
VAT excluded: €1.56
Size : 1/4"X1/2"
In stock 64 pieces in stock Ships in 24/48 hours

Description

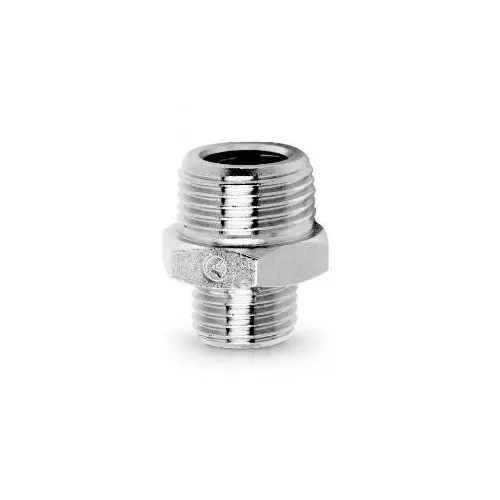

Reducing Parallel Double Male Nipple Camozzi Series 2000 - Item No. 2511


Camozzi Mod. 2511 metric-parallel reducing nipple, from the Series 2000 of nickel-plated brass accessory fittings. It is a double male with two parallel threads of different sizes, G to ISO 228 or metric M5: it joins two components with female ports of different diameter, for example a 1/4 valve and a 3/8 manifold, without a separate reducer. The central hexagon allows tightening with a spanner. The Series 2000 includes joints for compressed air systems with operating temperature from -40 to 120 °C. Combinations M5-1/8, 1/8-1/4, 1/4-3/8 and 1/4-1/2 among the variants.

Technical Specifications

  • Type: Parallel reducing double male nipple
  • Threads: Parallel G (ISO 228) or M5, of different sizes
  • Sizes: M5-1/8, 1/8-1/4, 1/4-3/8, 1/4-1/2, among the variants
  • Material: Nickel-plated brass
  • Operating temperature: -40 to 120 °C
  • Item No.: 2511
  • Brand: CAMOZZI

Applications and Uses

  • Reductions between parallel female ports
  • Valves, manifolds and air treatment units
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL25111412
Manufacturer code
2511 1/4-1/2

Attachments
