CAMOZZI FITTING ART.2810 1/4

Code: CL281014
€6.70
VAT excluded: €5.49
Size : 1/4"
In stock 4 pieces in stock Ships in 24/48 hours

Description

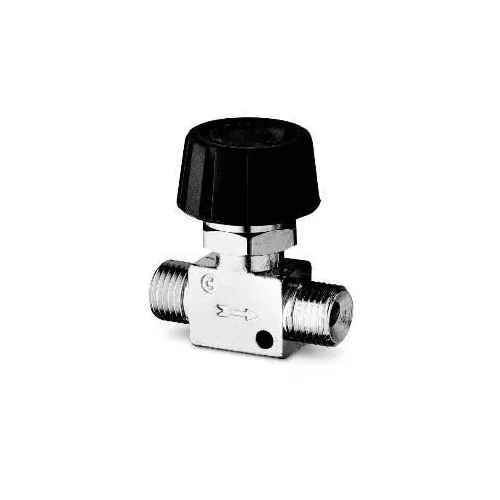

Bidirectional Flow Control Valve Camozzi G1/4 - Item No. 2810 1/4


Camozzi Mod. 2810 1/4 flow control valve, from the Series 28. It is a bidirectional cone-type regulator to fit in line: turning the handwheel throttles the passage and adjusts the quantity of air, in both flow directions. G1/4 ports. It is made of nickel-plated brass with NBR seals and an engineering polymer handwheel, suitable for compressed air, water and mineral oil. The catalogue provides for direct connection of plastic, copper or brass tubes with nut and olive of the Series 1000. Pressure from 0 to 10 bar, temperature from 0 to 80 °C. Flow 740 Nl/min at free flow.

Technical Specifications

  • Type: Bidirectional cone-type flow control valve
  • Ports: G1/4
  • Materials: Nickel-plated brass, NBR seals, engineering polymer handwheel
  • Operating pressure: 0 to 10 bar
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Flow: 740 Nl/min at free flow, 508 Nl/min at 1 bar
  • Fluids: Compressed air, water, mineral oil
  • Item No.: 2810 1/4
  • Brand: CAMOZZI

Applications and Uses

  • Adjusting the quantity of air on lines and users
  • Blowing, cooling and metered supply
  • Low-pressure water or oil circuits

More details

Brand
CAMOZZI
Code
CL281014
Manufacturer code
2810 1/4
