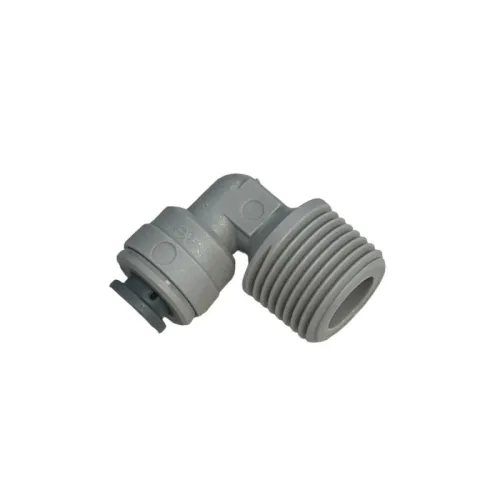

PLASTIC TERMINAL ELBOW FITTING
€2.10
VAT included
Delivery in 24/48 hours
PVC fittings for compressed air systems, designed to connect anodised aluminium pipes in Tee, bend and intermediate joint configurations.
Guarantee safe & secure checkout
The Spiralflex fittings are components in PVC with high chemical and mechanical resistance, intended for connecting anodised aluminium pipes in pneumatic systems, compatible with Tee branches, bends, intermediate joints and other standard configurations, fitted with push-fit or threaded connections depending on the model, optimised to ensure an airtight seal and reliability at the pressures and temperatures typical of industrial compressed air systems.
Technical specifications:
-
Material: PVC
-
Type: Tee, bends, intermediate joints and standard fittings
-
Connection: push-fit or male/female threaded connection
-
Compatibility: anodised aluminium pipes
-
Maximum working pressure: up to 10–12 bar (depending on the model)
-
Operating temperature: -10 °C ÷ +60 °C
-
Chemical resistance: high, suitable for industrial environments
-
Fields of application: industrial pneumatic systems, automation, mechanical workshops
-
Certifications: compliance with industrial pneumatic standards
TRPI480821S
2 items
Specific References
- MPN
- PI480821S
