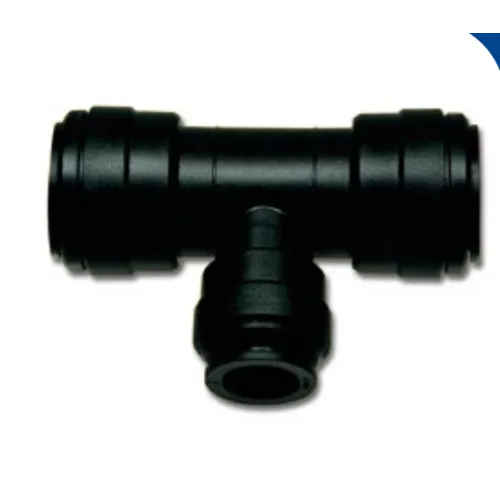

PVC REDUCING TEE FITTING 22X15X22

Code: TRJTR22
€8.40
VAT excluded: €6.89
Size : 22X15X22
In stock 12 pieces in stock Ships in 24/48 hours

Description

Reducing Tee Fitting Spiralflex 22x15x22 for Aluminium Pipe - Item No. JTR22


Spiralflex JTR22 reducing tee push-fit fitting, size 22x15x22, for the compressed air distribution system in anodised aluminium pipe. On the 22 mm main line it creates a 15 mm branch, for example for a drop or a secondary branch. The connection is push-in: the pipe, marked 18 mm from the edge, is pushed in by hand as far as the end stop and a collet with stainless steel teeth holds it, while an O-ring ensures the seal. The body is made of acetal resin. With push-fit fittings the system works up to 10 bar. The 22 fittings can be dismantled and reused without replacing any components.

Technical Specifications

  • Type: Reducing tee push-fit fitting
  • Size: 22 x 15 x 22 mm
  • Material: Acetal resin
  • Connection: Push-in, collet with stainless steel teeth and O-ring
  • Maximum pressure with push-fit fittings: 10 bar
  • System: Spiralflex anodised aluminium pipe
  • Item No.: JTR22
  • Brand: SPIRALFLEX

Applications and Uses

  • Branches on aluminium pipe air systems
  • Drops towards workstations
  • Extending existing systems without welding or threading

More details

Brand
SPIRALFLEX
Code
TRJTR22
Manufacturer code
JTR 22

Recommended accessories and spare parts

Reviews (0)
No customer reviews for the moment.
