CAMOZZI FITTING ART. 2520 MF

Code: CL25201212
€2.00
VAT excluded: €1.64
Size : M.1/2"XF.1/2"
In stock 23 pieces in stock Ships in 24/48 hours

Description

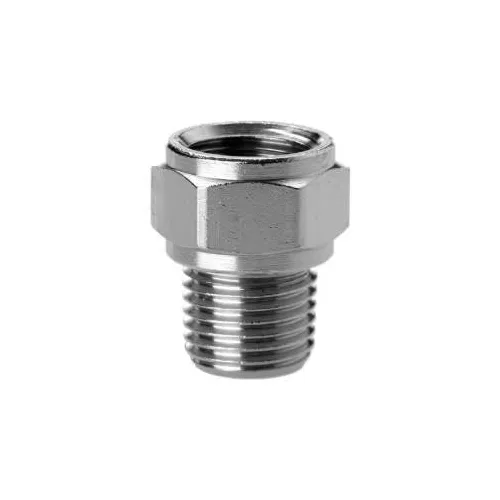

Male-Female Reducing Extension Camozzi Series 2000 - Item No. 2520


Camozzi Mod. 2520 tapered male reducing extension, from the Series 2000 of nickel-plated brass accessory fittings. It has a tapered male R thread, to ISO 7, and a parallel female G thread, to ISO 228, of equal or larger size: it extends a threaded port and at the same time changes its size, for example to bring the outlet of a valve out of a recess or to adapt it to a larger-diameter fitting. The body with hexagon is tightened with a spanner. The Series 2000 includes joints for compressed air systems with operating temperature from -40 to 120 °C. Male and female combinations among the variants.

Technical Specifications

  • Type: Male-female reducing extension
  • Threads: Male R (ISO 7), female G (ISO 228)
  • Sizes: from 1/8 to 1/2, combinations among the variants
  • Material: Nickel-plated brass
  • Operating temperature: -40 to 120 °C
  • Item No.: 2520
  • Brand: CAMOZZI

Applications and Uses

  • Extension and adaptation of threaded ports
  • Outlets of valves and components in recessed positions
  • Compressed air systems and lines in workshops and industry

More details

Brand
CAMOZZI
Code
CL25201212
Manufacturer code
2520 1/2

Attachments
